SV-B9DL/SVP-B9DL
BRONZE SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
DISC/SEAT: FORGED BRASS. (1*2)
SEAL: PTFE (SVP-B9DL)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITH LEVER)
SCREWED END TO BS21, ANSI B2.1
DISC/SEAT: FORGED BRASS. (1*2)
SEAL: PTFE (SVP-B9DL)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITH LEVER)
(SV-B9DL/SVP-B9DL) LOW LIFT BRONZE SAFETY RELIEF VALVE (1x2)
" 317 " BRAND BRONZE SAFETY RELIEF VALVE BODY: BRONZE. SEAT/DISC/CAP: FORGED BRASS. SCREWED END TO BSPT, NPT. WITH LEVER. SET: 0.3-10 KGS. 317 SEAL
OF SAFETY RELIEF VALVE (LOW LIFT & FULL BORE) OF T-ONE-S TRADING INC.
TAIWAN MANUFACTURER
When placing order, please indicate Working Pressure
(Spring adjusting range: ± 1 kg/cm2)
The features of low lift bronze safety valves for which the valve seat & disc are processed by lapping.
The Disc can be replaced with PTFE for good effect of anti-leakage. (Model: SVP-B9DA, SVP-B9DL)

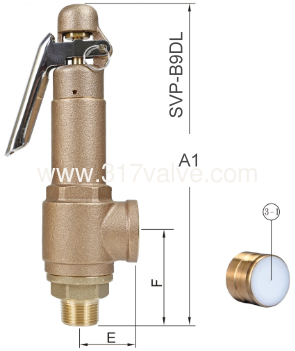

(SV-B9DL)
BRONZE SAFETY RELIEF VALVE (1x2)
MODEL:
SV-B9DA / SVP-B9DA (NO LEVER)
SV-B9DL / SVP-B9DL (WITH LEVER)
When placing order, please indicate Working Pressure
(Spring adjusting range: ± 1 kg/cm2)
The features of low lift bronze safety valves for which the valve seat & disc are processed by lapping.
The Disc can be replaced with PTFE for good effect of anti-leakage. (Model: SVP-B9DA, SVP-B9DL)
