SS316-S89
ST.ST.316 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: SUS316. (1*1)
SET P.: 3.5, 7, 10 KGS/CM2.
SIZE: 1/2”~2” (WITH LEVER)
INLET / OUTLET: FEMALE SCREWED
(Spring adjusting range: ± 1 kg/cm2)
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: SUS316. (1*1)
SET P.: 3.5, 7, 10 KGS/CM2.
SIZE: 1/2”~2” (WITH LEVER)
INLET / OUTLET: FEMALE SCREWED
(Spring adjusting range: ± 1 kg/cm2)
(SS316-S89) FF ST.ST.316 SAFETY RELIEF VALVE Double Female Screwed. (Inlet/Outlet) Closed Type
" 317 " BRAND ST.ST.316 SAFETY RELIEF VALVE (F/F)
BODY/SEAT/DISC: SUS316. SPRING: SUS304. SCREWED END TO BSPT, NPT. WITH LEVER.
SET: 10 KGS. 317 SEAL OF SAFETY RELIEF VALVE (LOW LIFT & FULL BORE) OF
T-ONE-S TRADING INC. TAIWAN MANUFACTURER

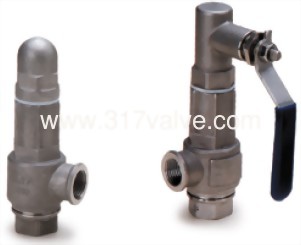

(SS316-S89) ST.ST.316 SAFETY RELIEF VALVE
DOUBLE FEMALE SCREWED CLOSED TYPE (WITH LEVER)

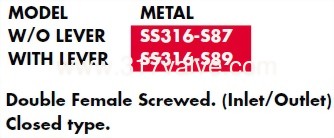

MODEL:
SS316-S87 (WITHOUT LEVER)
SS316-S89 (WITH LEVER)

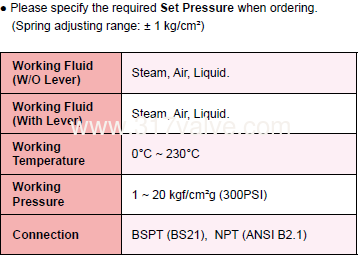

Please specify the required Working Pressure and Set Pressure when ordering.
This type of safety valve is characterized by regulating of pressure in valve rising and blowing-out when actuated and is the smallest and lightest valve, and also can be used in non-corrosive gases (air, oxygen, nitrogen, etc.) steam and liquids, such as water and oil. The dimensions shown in the chart are subject to change without notice.
(SS316-S89) ST.ST.316 SAFETY RELIEF VALVE
DOUBLE FEMALE SCREWED CLOSED TYPE (WITH LEVER)
MODEL:
SS316-S87 (WITHOUT LEVER)
SS316-S89 (WITH LEVER)
Please specify the required Working Pressure and Set Pressure when ordering.
This type of safety valve is characterized by regulating of pressure in valve rising and blowing-out when actuated and is the smallest and lightest valve, and also can be used in non-corrosive gases (air, oxygen, nitrogen, etc.) steam and liquids, such as water and oil. The dimensions shown in the chart are subject to change without notice.
