" 317 " BRAND ST.ST.316 SAFETY RELIEF VALVE INLET/OUTLET DOUBLE FEMALE SCREWED. SEAT/DISC/CAP: CF8M. SCREWED END TO BSPT, NPT. WITH LEVER. SET: 0.3-10 KGS. 317 SEAL OF SAFETY RELIEF VALVE (LOW LIFT & FULL BORE) OF T-ONE-S TRADING INC. TAIWAN MANUFACTURER

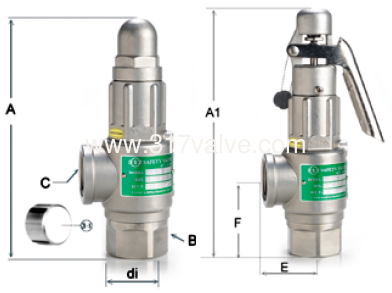

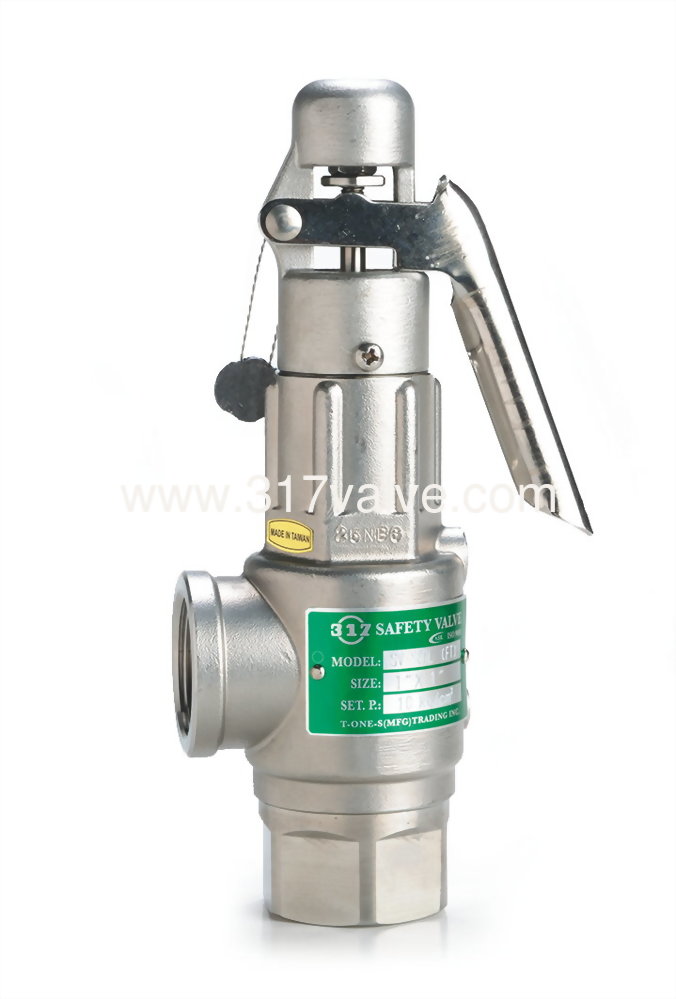

SV-S8DL(FT)  ST.ST.316 SAFETY RELIEF VALVE (1x2)
DOUBLE FEMALE SCREWED. (FT)

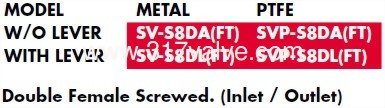

MODEL:
SV-S8DA(FT) / SVP-S8DA(FT)  (WITHOUT LEVER)
SV-S8DL(FT) / SVP-S8DL(FT)  (WITH LEVER)

Please specify the required Working Pressure and Set Pressure when ordering.

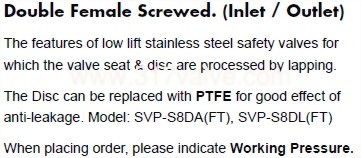

The features of low lift stainless steel safety valves for which the valve seat & disc are processed by lapping.
The Disc can be replaced with PTFE for good effect of anti-leakage. Model: SVP-S8DA(FT), SVP-S8DL(FT)
