SV-S9A/SVP-S9A

ST.ST.304 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8.
SEAL: PTFE (SVP-S9A)

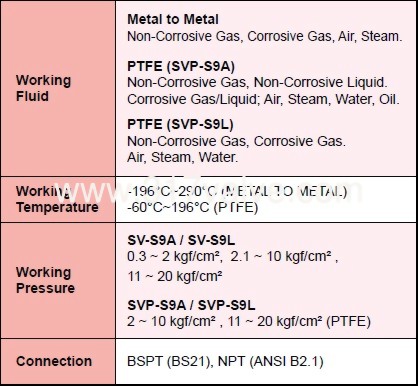

SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITHOUT LEVER)
(SV-S9A/SVP-S9A) LOW LIFT ST.ST.304 SAFETY RELIEF VALVE

" 317 " BRAND ST.ST.304 SAFETY RELIEF VALVE SEAT/DISC/CAP: CF8. SCREWED END TO BSPT, NPT. WITHOUT LEVER. SET: 0.3-10 KGS. 317 SEAL OF SASFETY RELIEF VALVE (LOW LIFT & FULL BORE) OF T-ONE-S TRADING INC. TAIWAN MANUFACTURER


(SV-S9A) ST.ST.304 SAFETY RELIEF VALVE

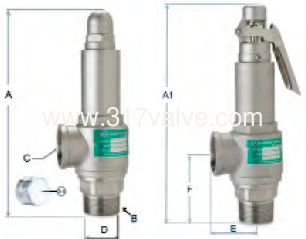

MODEL:
SV-S9A / SVP-S9A  WITHOUT LEVER
SV-S9L / SVP-S9L  WITH LEVER

When placing order, please indicate Working Pressure
The features of low lift stainless steel safety valves for which the valve seat & disc are processed by lapping.
The Disc can be replaced with PTFE for good effect of anti-leakage. (Model: SVP-S9A, SVP-S9L)
