SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8M. (1*2)
SEAL: PTFE (SVP-S8DL)
SET P.: 0.3-10 KGS/CM2. (ALT.20/30K)
SIZE: 1/2”~2” (WITH LEVER)

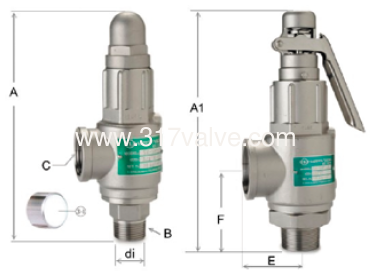

" 317 " BRAND ST.ST.316 SAFETY RELIEF VALVE SEAT/DISC/CAP: CF8M. SCREWED END TO BSPT, NPT. WITHOUT LEVER. SET: 0.3-10 KGS. 317 SEAL OF SAFETY RELIEF VALVE (LOW LIFT & FULL BORE) OF T-ONE-S TRADING INC. TAIWAN MANUFACTURER
(SV-S8DL) ST.ST.316 SAFETY RELIEF VALVE (1x2)

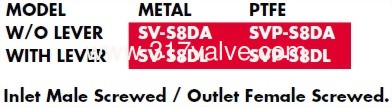

SV-S8DA / SVP-S8DA (WITHOUT LEVER)
SV-S8DL / SVP-S8DL (WITH LEVER)

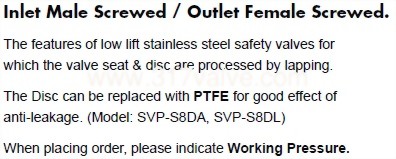

Inlet Male Screwed / Outlet Female Screwed.
Please specify the required Working Pressure and Set Pressure when ordering.
The features of low lift stainless steel safety valves for which the valve seat & disc are processed by lapping.
The Disc can be replaced with PTFE for good effect of anti-leakage. (Model: SVP-S8DA, SVP-S8DL)
