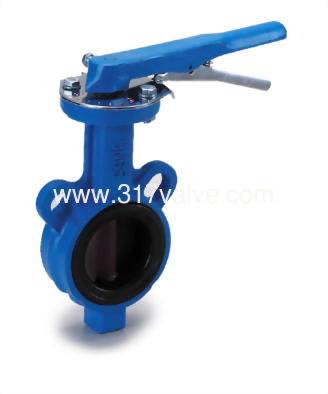

BF-WCB-26N.26S.26M.28G.28S.28M

CAST STEEL BUTTERFLY VALVE
WAFER TYPE. LEVER OPERATED.
DISC: FCD45. STEM: SS410.
BODY: WCB. SEAT: NBR/EPDM.
CONN: JIS 10K, ANSI 150 LBS, BS10
TABLE E, BS4504 PN10 / PN16.
SIZE: 1-1/2”~12”
(BF-WCB-26N/26S/26M/28G/28S/28M) CAST STEEL BUTTERFLY VALVE WAFER TYPE LEVER & GEAR OPERATED

CARBON STEEL (WCB) BUTTERFLY VALVE
WAFER TYPE. FC25 BODY


* Please specify the required Model No. when ordering
* Disc: FCD45 / CF8 / CF8M
* Stem: SS410 / SUS304 /SUS316
* Seat: NBR OR EPDM
* Operated: Lever or Gearbox

Applicable:
_Portable water
_Water & Wastewater treatment
_Irrigation
_Food & Beverage
_Textile line
_Chemical Processing
_Transportation
_Pulp & Paper
_Automation

CAST STEEL BUTTERFLY VALVE WAFER TYPE LEVER & GEAR OPERATED

MODEL: BF-WCB-26N/26S/26M  WAFER type LEVER operator
           BF-WCB-28G/28S/28M  WAFER type GEAR operator


Specifications:

1.     Flanges Connection: JIS 10K, ANSI 125LBS / 150LBS, BS10 Table E,
        DIN PN10, ISO PN10 / PN16.
2.     Fluid Application: Water, Seawater, Sewage, Air, Oil, Powder, Gas.
3.     Working Pressure: 10 kg/cm2 (150 PSI)
4.     Test Pressure: (ISO-5208)
       Body : 20 kg/cm2 (300 PSI)  24 kg/cm2 (340 PSI)
       Seat : 12 kg/cm2 (170 PSI)  18 kg/cm2 (255 PSI)
5.     50mm ~300mm in Octagon stem design to drive
       350mm~ 600mm in Square stem design to drive
