ST.ST.304/316 BUTTERFLY VALVE
WAFER TYPE. LEVER OPERATED.
DISC: SS304. STEM: SS304.
BODY: SS304. SEAT: NBR/EPDM.
CONN: JIS 10K, ANSI 150 LBS, BS10
TABLE E, BS4504 PN10 / PN16.
OPTION: GEARBOX OPERATED
SIZE: 1-1/2”~12”

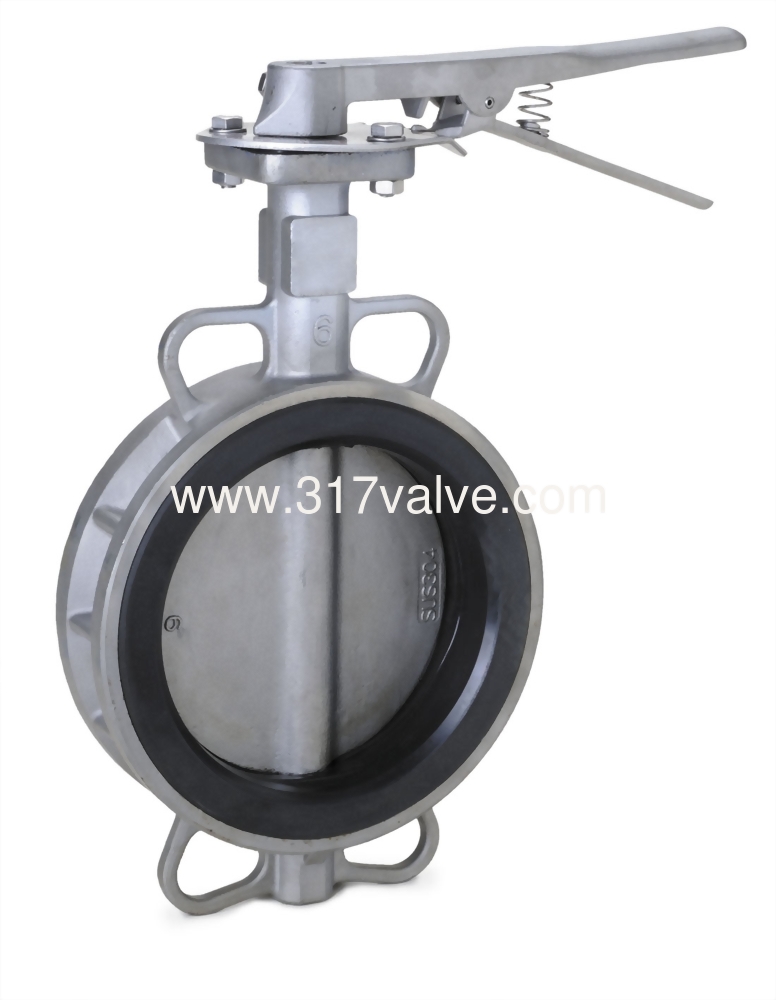

(BF-304-26S/316-26M/304-28S/316-28M) ST.ST.304 / ST.ST.316 BUTTERFLY VALVE WAFER TYPE LEVER & GEAR OPERATED

ST.ST.304/316 BUTTERFLY VALVE.
WAFER TYPE. LEVER/GEAR OPERATED


* Please specify the required Model No. when ordering
* Body: CF8 / CF8M
* Disc: CF8 / CF8M
* Stem: SUS304 /SUS316
* Seat: NBR OR EPDM
* Operated: Lever or Gearbox

Applicable:
_Portable water
_Water & Wastewater treatment
_Irrigation
_Food & Beverage
_Textile line
_Chemical Processing
_Transportation
_Pulp & Paper
_Automation

(BF-304-26S/316-26M/304-28S/316-28M)
ST.ST.304 / ST.ST.316 BUTTERFLY VALVE WAFER TYPE
LEVER & GEAR OPERATED

MODEL:
BF-304-26S/316-26M WAFER type LEVER operator
BF-304-28S/316-28M WAFER type GEAR operator

Specifications:
1.   Flanges Connection:JIS 10K, ANSI 125LBS / 150LBS, BS10 Table E
      DIN PN10, ISO PN10 / PN16.
2.   Fluid Application:Water, Seawater, Sewage, Air, Oil, Powder, Gas.
3.   Working Pressure: 10 kg/cm2 (150 PSI)
4.   Test Pressure: (ISO-5208)
      Body :20 kg/cm2 (300 PSI)  24 kg/cm2 (340 PSI)
      Seat :12 kg/cm2 (170 PSI)  18 kg/cm2 (255 PSI)
5.   Valve Sizes:50mm ~ 600mm are standard size.
6.   Face to Face:Designed to meet ISO 5752 table 5 short.
7.   Mounting Flange:Designed to comply with ISO 5211, can be easily fitted with an actuator.
8.   50mm Thru 300mm in Octagon stem design to drive the disc for open/close.
9.   350mm Thru 600mm in Square stem design to drive the disc for open/close.bf-304.316-3.png
