UAO

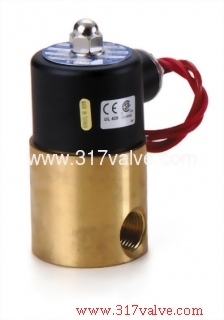

FORGE BRASS SOLENOID VALVE (3/2)
NORMALLY CLOSED. SCREWED END
BSPT, NPT, BSP. AC110V/220V, DC24V.
FOR AIR, WATER, OIL USE. SIZE: 1/4”~1/2”
PRESS: 0.5-15 KGF/CM2 TEMP: -5~80℃.
(UAO Series) MULTIPLEX, PILOT OPERATED PISTON, CONDUCTIVE AND NORMALLY CLOSED SOLENOID VALVE

  1. UAO SERIES IS MULTIPLEX-DRIVE, PISTON GUIDE,CONDUCTIVE NORMAL CLOSE.
  2. VALVE BODY MADE OF FORGED BRASS.
  3. STANDARD VOLTAGE: 110VAC / 220VAC / 24VDC. (50/60HZ)
  4. SPECIAL VOLTAGE AC/DC FOR CUSTOMER MADE.
  5. SCREWED END: BSPT, NPT, BSP.
  6. APPLICABLE FOR WORKING IN HIGH FREQUENCY MOVEMENT.
  7. HEAVY OIL MUST BE PRESSING AND HEATING.
  8. UAO SERIE S IS MOST APPLICABLE FOR SAND BLASTING
    MACHINE AND HIGH-PRESSURE AIR/OIL SPRAY SYSTEM.
  9. NORMAL WORKING TEMPERATURE: 80℃ (NBR).
  10. AC VOLTAGE TOLERANCE: +/- 10%
    DC VOLTAGE TOLERANCE: +/- 1%
  11. NOT APPLY FOR FLUID OF
    LIQUID STATUS WHEN HEAT, SOLID STATUS WHEN COOL.
    VISCOSITY OVER 20 CST.
    CORROSIVE FLUID.

(UAO Series) SOLENOID VALVE
MODEL: UAO Series
