USF(CONN)
CAST BRONZE SOLENOID VALVE
NORMALLY CLOSED. FLANGED
JIS10K, ANSI 150LBS, DIN PN16.
AC110V/220V, DC24V. FOR STEAM,
AIR, WATER, HEAVY OIL USE. SIZE: 1/2”~2”
PRESS: 0.5-15 KGF/CM2 TEMP: -5~185℃.
NORMALLY CLOSED. FLANGED
JIS10K, ANSI 150LBS, DIN PN16.
AC110V/220V, DC24V. FOR STEAM,
AIR, WATER, HEAVY OIL USE. SIZE: 1/2”~2”
PRESS: 0.5-15 KGF/CM2 TEMP: -5~185℃.

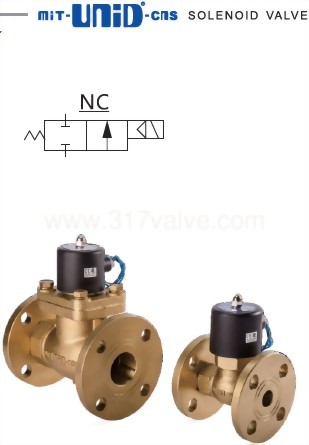

(USF (CONN.) Series) MULTIPLEX, PILOT OPERATED PISTON, CONDUCTIVE AND NORMALLY CLOSED SOLENOID VALVE FLANGED END
- US-F (CONN) SERIES MULTIPLEX-DRIVE, PISTON GUIDE, CONDUCTIVE NORMAL CLOSE.
- VALVE BODY MADE OF CAST BRONZE.
- STANDARD VOLTAGE: 110VAC / 220VAC / 24VDC. (50/60HZ)
- SPECIAL VOLTAGE AC/DC FOR CUSTOMER MADE.
-
CONNECTED SCREWED END: BSPT, NPT, BSP.
FLANGED END TO: JIS 10K, ANSI 150 LBS OR DIN PN16. - NORMAL WORKING TEMPERATURE: 185℃ (PTFE).
-
IN SPECIAL CASE, US-F CAN MADE 20
KGF/CM2, 30 KGF/CM2
40 KGF/CM2. PLEASE STATE THE TYPE OF FLUID WHEN ORDER. -
AC VOLTAGE TOLERANCE: +/- 10%
DC VOLTAGE TOLERANCE: +/- 1% -
NOT APPLY FOR FLUID OF
●LIQUID STATUS WHEN HEAT, SOLID STATUS WHEN COOL.
●VISCOSITY OVER 20 CST.
●CORROSIVE FLUID.
(USF Series) SOLENOID VALVE
MODEL: USF Series (Conn.)
MODEL: USF Series (Conn.)
