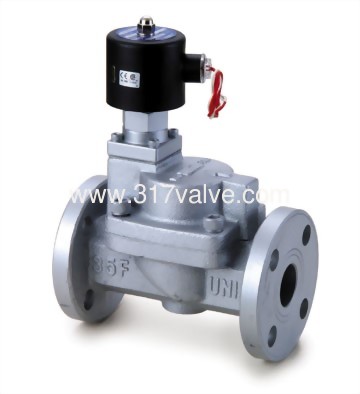

US-F-NO

FC20 2-WAY SOLENOID VALVE
NORMALLY OPENED. FLANGED
JIS10K, ANSI 150LBS, DIN PN16.
AC110V/220V, DC24V.
FOR STEAM, AIR, WATER, LIGHT OIL USE.
SIZE: 1-1/4”~4” PRESS: 1-8 KGF/CM2
TEMP: -5~130℃.
(US-F-NO Series) MULTIPLEX, PILOT OPERATED PISTON, CONDUCTIVE AND NORMALLY OPEN FC20 SOLENOID VALVE 1.1/4

  1. US-F-NO SERIES IS MULTIPLEX-DRIVE, PISTON GUIDE, CONDUCTIVE NORMAL OPEN.
  2. VALVE BODY MADE OF FC-20.
  3. STANDARD VOLTAGE: 110VAC / 220VAC / 24VDC. (50/60HZ)
  4. SPECIAL VOLTAGE AC/DC FOR CUSTOMER MADE.
  5. FLANGED END: JIS 10K, ANSI 150 LBS OR DIN PN-16.
  6. NORMAL WORKING TEMPERATURE: 130℃.
  7. AC VOLTAGE TOLERANCE: +/- 10%
    DC VOLTAGE TOLERANCE: +/- 1%
  8. NOT APPLY FOR FLUID OF
    LIQUID STATUS WHEN HEAT, SOLID STATUS WHEN COOL.
    VISCOSITY OVER 20 CST.
    CORROSIVE FLUID.
(US-F-NO Series) SOLENOID VALVE
MODEL: US-F-NO Series
