SUW-NO

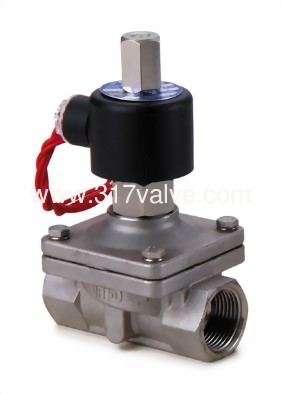

CF8M 2-WAY SOLENOID VALVE
NORMALLY OPENED. SCREWED END BSPT,
NPT, BSP. AC110V/220V, DC24V.
FOR WATER, AIR, LIGHT OIL, GAS, VACUUM.
1/2”~1” (CF8M) 0-7K AIR
1-1/4”~2”(CF8M) 0-5K WATER
TEMP: -5~80℃.
(SUW-NO Series) DIRECT, MULTIPLEX, CONNECTED DIAPHRAGM CONDUCTIVE AND NORMLLLY OPEN SS316 SOLENOID VALVE

  1. SUW-NO SERIES IS PILOT DIAPHGRAM DRIVE, NORMAL OPEN.
  2. VALVE BODY MADE OF INVESTMENT CASTING S/S 316.
  3. SUW-NO CAN BE OPERATED DIRECTLY WITHOUT PRESSURE.
  4. STANDARD VOLTAGE: 110VAC / 220VAC / 24VDC. (50/60HZ)
  5. SPECIAL VOLTAGE AC/DC FOR CUSTOMER MADE.
  6. SCREWED END: BSPT, NPT, BSP.
  7. NORMAL WORKING TEMPERATURE: 80℃ (NBR).
    OTHERS: VITON (130℃), SILICON (130℃) WHEN REQUESTED.
  8. AC VOLTAGE TOLERANCE: +/- 10%
    DC VOLTAGE TOLERANCE: +/- 1%
  9. NOT APPLY FOR FLUID OF
    LIQUID STATUS WHEN HEAT, SOLID STATUS WHEN COOL.
    VISCOSITY OVER 20 CST.
    CORROSIVE FLUID.

(SUW-NO Series) SOLENOID VALVE
MODEL: SUW-NO Series
