UPS-NO

FORGE BRASS SOLENOID VALVE
NORMALLY OPENED. SCREWED END
BSPT, NPT, BSP. AC110V/220V, DC24V.
FOR STEAM, WATER, AIR, LIGHT OIL.
SIZE: 1/2”~1” PRESS: 0.5-10 KGF/CM2
TEMP: -5~130℃.
(UPS-NO Series) MULTIPLEX, PILOT OPERATED PISTON, CONDUCTIVE AND NORMALLY OPEN SOLENOID VALVE

  1. UPS-NO SERIES IS MULTIPLEX-DRIVE, PISTON GUIDE, CONDUCTIVE NORMAL OPEN.
  2. VALVE BODY MADE OF FORGE BRASS.
  3. STANDARD VOLTAGE: 110VAC / 220VAC / 24VDC. (50/60HZ)
  4. SPECIAL VOLTAGE AC/DC FOR CUSTOMER MADE.
  5. SCREWED END: BSPT, NPT, BSP.
  6. NORMAL WORKING TEMPERATURE: 130℃.
  7. APPLICABLE FOR WORKING IN HIGH FREQUENCY MOVEMENT LOCATION.
  8. AC VOLTAGE TOLERANCE: +/- 10%
    DC VOLTAGE TOLERANCE: +/- 1%

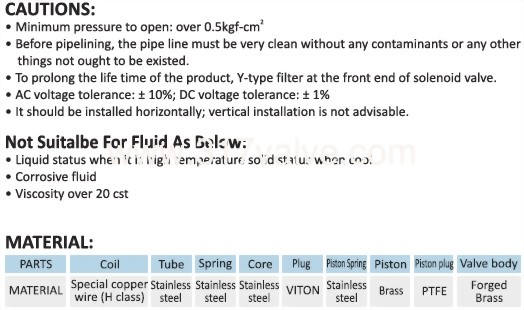

  9. NOT APPLY FOR FLUID OF
    LIQUID STATUS WHEN HEAT, SOLID STATUS WHEN COOL.
    VISCOSITY OVER 20 CST.
    CORROSIVE FLUID.

(UPS-NO Series) SOLENOID VALVE
MODEL: UPS-NO Series
