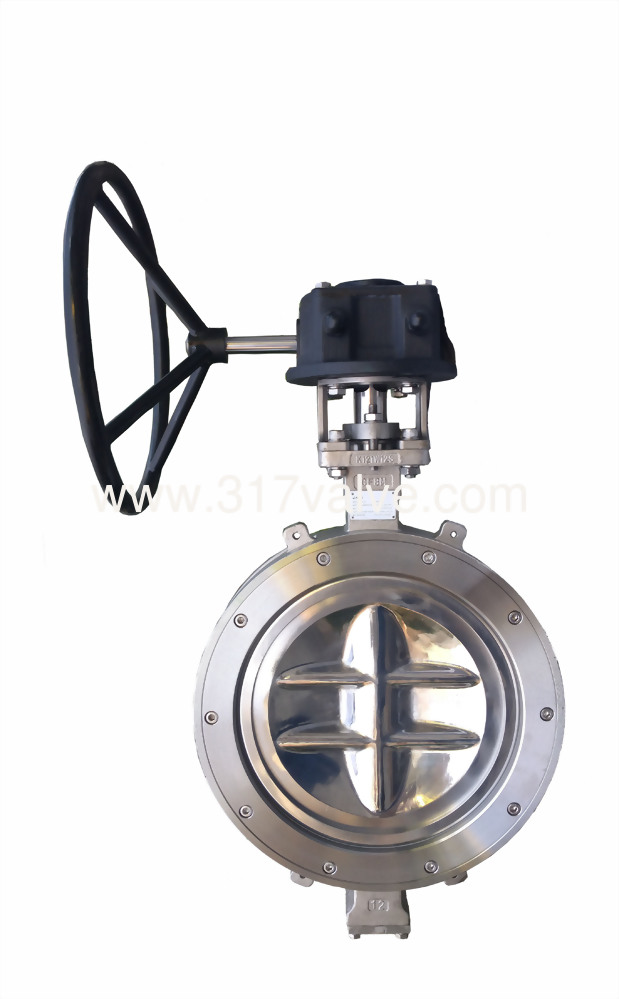

BF-121W. BF-121L. BF-122W. BF-122L

(BF-121/BF-122)BUTTERFLY VALVE DOUBLE OFFSET SERIES

MODEL:
CLASS 150: BF-121W (Wafer). BF-121L (Lug)
CLASS 300: BF-122W (Wafer). BF-122L (Lug)

* Please specify the required Model No. when ordering
* Optional: Lever Handle, Gear Operator, Pneumatic and Electric Actuators
* Valve Designed to MSS SP-68, API 609, ANSI B16.34
* Face to Face: API 609, MSS SP-68, ISO5752
* Suit for: ANSI B16.5, EN1092, JIS B2220
* Inspection & Testing: API 598, EN 12266
* Mounting Flange: ISO 5211
* Material: A216-WCB, A351-CF8, CF8M
* Body Configurations: Wafer, Lug

Applicable:
_Portable water
_Water & Wastewater treatment
_Irrigation
_Food & Beverage
_Textile line
_Vacuum System
_Chemical Processing
_Transportation
_Pulp & Paper
_Automation

HIGH PERFORMANCE BUTTERFLY VALVE
DOUBLE OFFSET SERIES WAFER TYPE/LUG TYPE

MODEL:
CLASS 150: BF-121W (Wafer). BF-121L (Lug)
CLASS 300: BF-122W (Wafer). BF-122L (Lug)

SUIT FOR: ANSI B16.5, EN1092, JIS B2220
INSPECTION & TESTING: API 598, EN12266
MOUNTING FLANGE: ISO 5211
OPERATED: LEVER HANDLE, GEAR OPERATOR, PNEUMATIC OR ELECTRIC ACTUATORS
SIZE: 50mm~600mm (2”~24”)

SEAT Design:
R type: Unique Soft Seat design
P type: Soft Seat design
S type: S shaft Flexible Metal Seat design
