• MULTIPLEX, PILOT OPERATED PISTON, CONDUCTIVE AND NORMALLY CLOSED FORGED BRASS SOLENOID VALVE 1/2  (PKS OF EXPLOSION PROOF EX II2 G EX E MB IIC T4 GB Series)
  • MULTIPLEX, PILOT OPERATED PISTON, CONDUCTIVE AND NORMALLY CLOSED FORGED BRASS SOLENOID VALVE 1/2 (PKS OF EXPLOSION PROOF EX II2 G EX E MB IIC T4 GB Series)

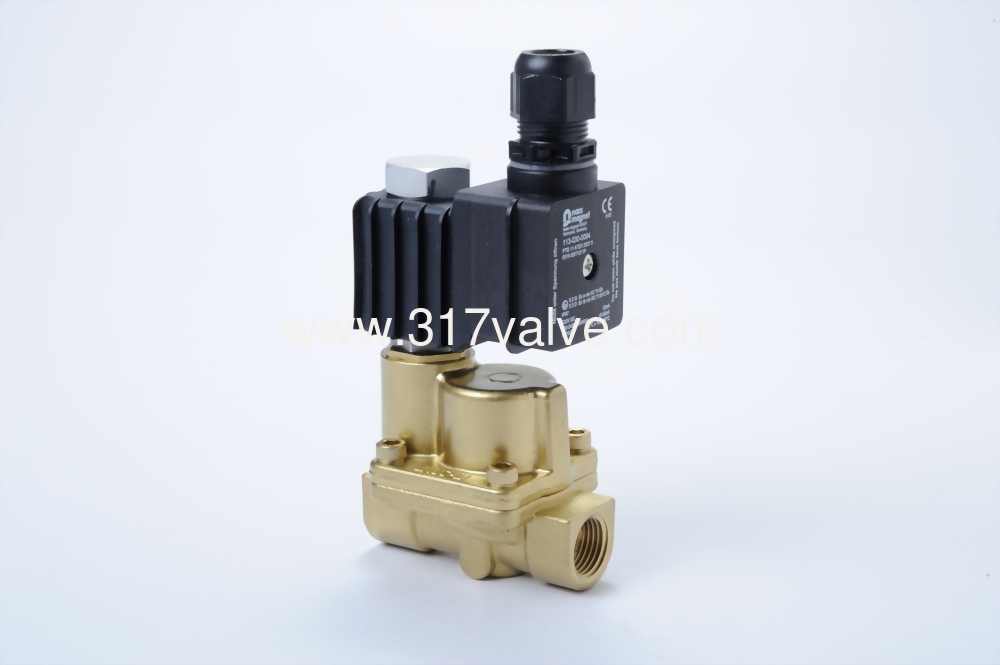

PKS of Explosion Proof Series Solenoid Valve

FORGE BRASS SOLENOID VAVLE
EXPLOSION PROOF PROTECTION: EX II2 G EX E MB IIC T4 GB
WATER PROOF PROTECTION: IP67
NORMALLY CLOSED. SCREWED END
BSPT, NPT, BSP. AC110V/220V, DC24V.
FOR STEAM, AIR, WATER.
SIZE: 1/2”~1” TEMP: -5~70℃.
PRESS: 0.5-10 KGF/CM2
(PKS OF EXPLOSION PROOF EX II2 G EX E MB IIC T4 GB Series) MULTIPLEX, PILOT OPERATED PISTON, CONDUCTIVE AND NORMALLY CLOSED FORGED BRASS SOLENOID VALVE 1/2

  1. PKS SERIES IS MULTIPLEX-DRIVE, PISTON GUIDE, CONDUCTIVE NORMAL OPEN. (ALT.: NORMAL CLOSE)
  2. VALVE BODY MADE OF FORGED BRASS.
  3. STANDARD VOLTAGE: 110VAC / 220VAC / 24VDC. (50/60HZ)
  4. SCREWED END: BSPT, NPT, BSP.
  5. AMBIENT TEMPERATURE  NOT EXCEED: 70℃
    OPERATING TEMPERATURE  NOT EXCEED: 60℃
  6. APPLICABLE FOR WORKING IN HIGH FREQUENCY MOVEMENT LOCATION.
  7. AC VOLTAGE TOLERANCE: +/- 10%
    DC VOLTAGE TOLERANCE: +/- 1%
  8. NOT APPLY FOR FLUID OF
    LIQUID STATUS WHEN HEAT, SOLID STATUS WHEN COOL.
    VISCOSITY OVER 20 CST.
    CORROSIVE FLUID.

(PKS Series) SOLENOID VALVE
MODEL: PKS Series (EXPLOSION PROOF Series)
