• MULTIPLEX, PILOT OPERATED PISTON, CONDUCTIVE AND NORMALLY CLOSED SS316 SOLENOID VALVE 1/2 (SKS OF EXPLOSION PROOF EX II2 G EX E MB IIC T4 GB Series)
  • MULTIPLEX, PILOT OPERATED PISTON, CONDUCTIVE AND NORMALLY CLOSED SS316 SOLENOID VALVE 1/2 (SKS OF EXPLOSION PROOF EX II2 G EX E MB IIC T4 GB Series)

SKS of Explosion Proof Series Solenoid Valve

CF8 2-WAY SOLENOID VALVE
EXPLOSION PROOF PROTECTION: EX II2 G EX E MB IIC T4 GB
WATER PROOF PROTECTION: IP67
NORMALLY CLOSED. SCREWED END
BSPT, NPT, BSP. AC110V/220V, DC24V.
FOR WATER, AIR.
SIZE: 1/2”~1” TEMP: -5~70℃.
PRESS: 0.5-10 KGF/CM2
(SKS OF EXPLOSION PROOF EX II2 G EX E MB IIC T4 GB Series) MULTIPLEX, PILOT OPERATED PISTON, CONDUCTIVE AND NORMALLY CLOSED SS316 SOLENOID VALVE 1/2

  1. SKS SERIES IS MULTIPLEX-DRIVE, PISTON GUIDE, CONDUCTIVE NORMAL CLOSED.
  2. VALVE BODY MADE OF INVESTMENT CASTING S/S 304.
  3. STANDARD VOLTAGE: 110VAC / 220VAC / 24VDC. (50/60HZ)
  4. SCREWED END: BSPT, NPT, BSP.
  5. NORMAL WORKING TEMPERATURE: 70℃.
  6. APPLICABLE FOR WORKING IN HIGH FREQUENCY MOVEMENT LOCATION.
  7. AC VOLTAGE TOLERANCE: +/- 10%
    DC VOLTAGE TOLERANCE: +/- 1%
  8. NOT APPLY FOR FLUID OF
    LIQUID STATUS WHEN HEAT, SOLID STATUS WHEN COOL.
    VISCOSITY OVER 20 CST.
    CORROSIVE FLUID.

(SKS Series) SOLENOID VALVE
MODEL: SKS Series (EXPLOSION PROOF Series)





SKS-15~25

PRODUCT DESCRIPTION

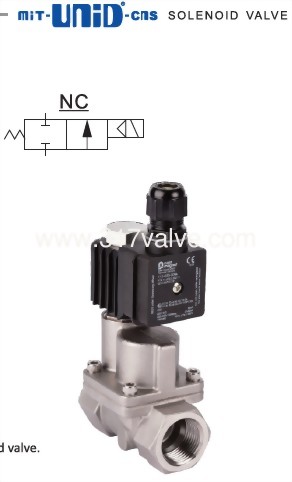

*   SKS series is multiplex, pilot operated piston, conductive and normally closed (NC) 2/2 way solenoid valve.

*  Explosion proof protection level: EX II2 G Ex e mb IIC T4 Gb.

*   IP 67

*  Specially suitable for frequent operation

*  Availability of fluid type: water, air, light oil.

CAUTIONS:

*  Minimum pressure to open: over 0.5kgf-cm2.

*  Before pipelining, the pipe line must be very clean without any contaminants or any other things not ought to be existed.

*   To prolong the life time of the product, Y-line filter should be installed in the front end of solenoid valve.

*   Ambient temperature should be under 70.

*   Operating temperature should be under 60.

*   AC voltage tolerance: ±10%; DC voltage tolerance: ±1%.

*   It should be installed horizontally; vertical installation is not advisable.

Not Suitable For Fluid As Below:

*   Liquid status when it is high temperature solid status when cool.

*   Corrosive fluid.

*   Viscosity over 20cst.
