  • BELLOWS EXPANSION JOINT (JF-150 SERIES)
  • BELLOWS EXPANSION JOINT (JF-150 SERIES)

JF-150

BELLOWS EXPANSION JOINT
VAN STONED END TYPE WITH INTERNAL SLEEVE
BELLOWS/SLEEVE: 300 SERIES ST.ST.
FLANGE: DUCTILE, CARBON STEEL,
ST.ST. 300 SERIES.
W.P.: 10 BARS. SIZE: 40~300MM.
(JF-150 SERIES) BELLOWS EXPANSION JOINT

(JF-150 SERIES) BELLOWS EXPANSION JOINT
VAN STONED END TYPE WITH INTERNAL SLEEVE

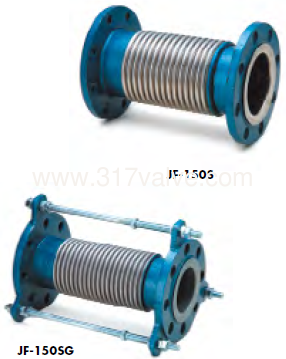

FLOATING FLANGE TYPE (JF150N/150S/150SG)


* Please specify the required Model No. when ordering
* One ply bellows connected with floating flanges
* Optional: Internal Sleeve and Tie Rods
* Designed to accommodate axial movement of pipeline
   _Material: S.S.304 / S.S.316
   _Range: 40mm ~ 300mm
   _Axial movement: 50mm (+10 -40mm)
   _Flange drilled to DIN PN10/PN16, JIS 10K, and ANSI 150Lbs
   _Pressure: in medium and low working pressure
   _Temperature: in medium and low working temperature

Applicable:
_Petrochemical industry lines
_Chemical lines
_Circulating water lines
_Air Conditioning, Fire, and Steam system
_Factory lines
