JF-1000
BELLOWS EXPANSION JOINT
WELDED WITH TUBE END
FLANGES AND EXTERNAL COVER
BELLOWS/SLEEVE: 300 SERIES ST.ST.
TUBE END: CARBON STEEL, ST.ST.
W.P.: 16, 25 BARS. SIZE: 15~600MM.
WELDED WITH TUBE END
FLANGES AND EXTERNAL COVER
BELLOWS/SLEEVE: 300 SERIES ST.ST.
TUBE END: CARBON STEEL, ST.ST.
W.P.: 16, 25 BARS. SIZE: 15~600MM.
(JF-1000 SERIES) BELLOWS EXPANSION JOINT
(JF-1000 SERIES) BELLOWS EXPANSION JOINT
External cover type
* Please
specify the required Model No. when ordering
* One or multiply bellows welded with tube ends and flanges and
external cover
* Designed to accommodate axial movement of pipeline

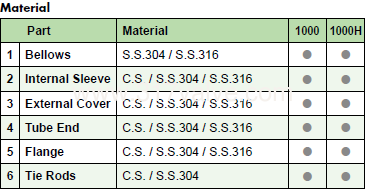

_Material: S.S.304 / S.S.316
_Range: 15mm ~ 600mm
_Axial movement: 32mm (+10 -22mm) to 50mm (+10 -40mm)
_Flange drilled to DIN PN10/PN16, JIS 10K, and ANSI 150Lbs
_Pressure: in high working pressure (JF-1000H) or in medium
pressure (JF-1000)
_Temperature: in high or medium working temperature
_Petrochemical industry lines
_Chemical lines
_Circulating water lines
_Air Conditioning, Fire, and Steam system
_Factory lines
_Specialize in upmost temperature and pressure line, or in highly security utility.
