  • BRAIDED HOSE FLEXIBLE JOINT / COMPENSATOR / FLEXIBLE CONNECTOR (JF-400BW SERIES)

JF-400BW

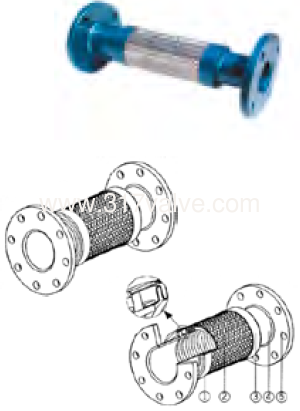

BRAIDED HOSE FLEXIBLE JOINT
WELDED WITH TUBE END AND FLANGES.
NO EXPANSIBILITY.
BELLOWS: 300 SERIES ST.ST.
WIRE BRAID: ST.ST.304
TUBE END: C/S, ST.ST.
SIZE: 15~300MM.
(JF-400BW SERIES) BRAIDED HOSE FLEXIBLE JOINT / COMPENSATOR / FLEXIBLE CONNECTOR

(JF-400BW SERIES) BRAIDED HOSE FLEXIBLE JOINT

* Please specify the required Model No. when ordering
* Multiply stainless steel bellows welded with tube ends and flanges
* No expansibility
* Designed to accommodate axial movement of pipeline
  _Material: S.S.304 / S.S.316
  _Range: 15mm ~ 300mm
  _ Flange drilled to DIN PN10/PN16, JIS 10K, and ANSI 150Lbs
  _Pressure: in high working pressure
  _Temperature: in high working temperature

 Applicable:
_Petrochemical industry lines
_Chemical lines
_Circulating water lines
_Air Conditioning, Fire, and Steam system
_Factory lines
_Specialize in upmost temperature and pressure line (hot Kerosene)
