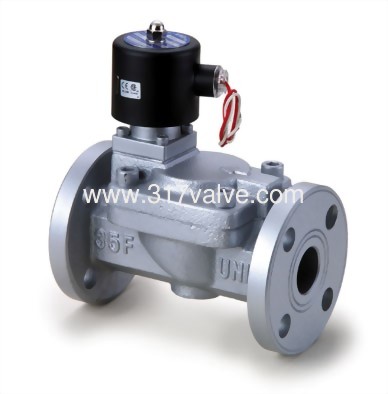

UWF(FC)

FC20 2-WAY SOLENOID VALVE
NORMALLY CLOSED. FLANGED
JIS10K, ANSI 150LBS, DIN PN16.
AC110V/220V, DC24V. FOR WATER, AIR, LIGHT OIL USE.
SIZE: 1-1/4”~4” (FC20)
PRESS: 0.5-8 KGF/CM2 TEMP: -5~80℃.
(UWF (FC) Series) MULTIPLEX, PILOT OPERATED DIAPHRAM, CONDUCTIVE AND NORMALLY CLOSED SOLENOID VALVE

  1. UWF(FC) SERIES IS MULTIPLEX-DRIVE, DIAPHRAGM GUIDE, CONDUCTIVE NORMAL CLOSE.
  2. VALVE BODY MADE OF FC-20.
  3. STANDARD VOLTAGE: 110VAC / 220VAC / 24VDC. (50/60HZ)
  4. SPECIAL VOLTAGE AC/DC FOR CUSTOMER MADE.
  5. FLANGED END: JIS 10K, ANSI 150LBS OR DIN PN16.
  6. NORMAL WORKING TEMPERATURE: 80℃ (NBR).
  7. AC VOLTAGE TOLERANCE: +/- 10%
    DC VOLTAGE TOLERANCE: +/- 1%
  8. NOT APPLY FOR FLUID OF
    ●LIQUID STATUS WHEN HEAT, SOLID STATUS WHEN COOL.
    ●VISCOSITY OVER 20 CST.
    ●CORROSIVE FLUID.
(UWF (FC) Series) SOLENOID VALVE
MODEL: UWF (FC) Series (ONE-PIECE, WATER)
