SUS

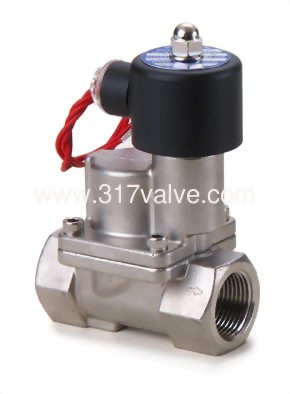

CF8M 2-WAY SOLENOID VALVE
NORMALLY CLOSED. SCREWED END
BSPT, NPT, BSP. 110V/220V, DC24V.
FOR STEAM, WATER, AIR, LIGHT OIL
SIZE: 1/2”~1” (0.5~10 KGF/CM2)
1.1/4”~2” (1~10 KGF/CM2)
TEMP: -5~185℃.
(SUS Series) MULTIPLEX, PILOT OPERATED PISTON, CONDUCTIVE AND NORMALLY CLOSED SOLENOID VALVE 1/2

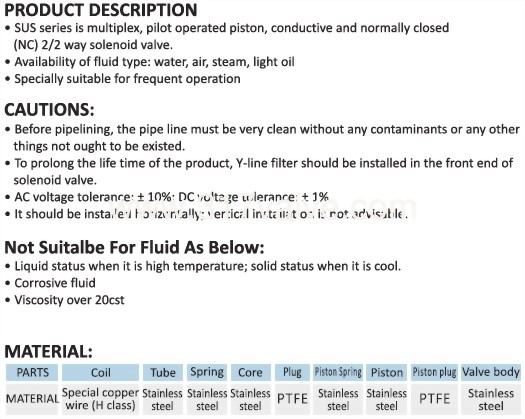

  1. SUS SERIES IS MULTIPLEX-DRIVE, PISTON GUIDE, AND CONDUCTIVE NORMAL CLOSE.
  2. VALVE BODY MADE OF INVESTMENT CASTING S/S 316.
  3. STANDARD VOLTAGE: 110VAC / 220VAC / 24VDC. (50/60HZ)
  4. SPECIAL VOLTAGE AC/DC FOR CUSTOMER MADE.
  5. SCREWED END: BSPT, NPT, BSP.
  6. NORMAL WORKING TEMPERATURE: 185. (PTFE)
  7. APPLICABLE FOR WORKING IN HIGH FREQUENCY MOVEMENT LOCATION.
  8. AC VOLTAGE TOLERANCE: +/- 10%
    DC VOLTAGE TOLERANCE: +/- 1%
  9. NOT APPLY FOR FLUID OF
    ●LIQUID STATUS WHEN HEAT, SOLID STATUS WHEN COOL.
    ●VISCOSITY OVER 20 CST.
    ●CORROSIVE FLUID.

(SUS Series) SOLENOID VALVE
MODEL: SUS Series
