BF-26NL.26SL.26ML.28GL.28ML
LUG TYPE. LEVER OPERATED.
DISC: FCD45. STEM: SS410.
BODY: FC25. SEAT: NBR/EPDM.
CONN: JIS 10K, ANSI 150 LBS, BS10
TABLE E, BS4504 PN10/PN16.
OPTION: GEARBOX OPERATED
SIZE: 1-1/2”~12”

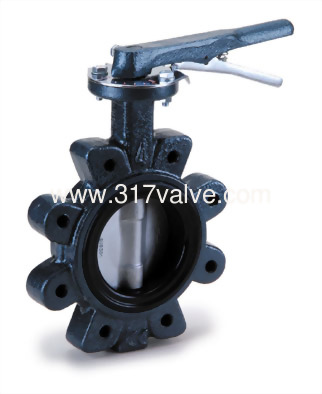

CAST IRON BUTTERFLY VALVE
LUG TYPE. FC25 BODY
* Please specify the required Model No. when
ordering
* DISC:
SS410 / SUS304 / SUS316
* STEM:
FCD45 / CF8 / CF8M
* SEAT: NBR OR EPDM
* WITH
LEVER OR GEAR OPERATED
Applicable:
_Portable water
_Water & Wastewater treatment
_Irrigation
_Food &
Beverage
_Textile line
_Chemical
Processing
_Transportation
_Pulp &
Paper
_Automation

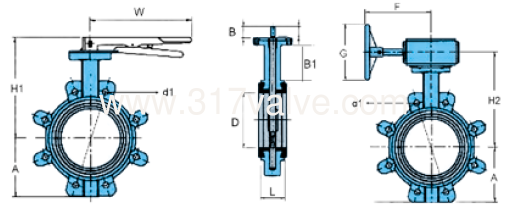

LUG TYPE LEVER & GEAR OPERATED
MODEL: BF-26NL/26SL/26ML LUG type LEVER operator
BF-28GL/28SL/28ML LUT type GEAR operator
Specifications:
1. Flanges Connection: JIS 10K, ANSI 125LBS /
150LBS, BS10 Table E,
DIN PN10, ISO PN10 / PN16.
2. Fluid Application: Water, Seawater, Sewage,
Air, Oil, Powder, Gas.
3. Working Pressure: 10 kg/cm2 (150 PSI)
4. Test Pressure: (ISO-5208)
Body :20 kg/cm2 (300 PSI) 24
kg/cm2 (340 PSI)
Seat :12 kg/cm2 (170 PSI) 18
kg/cm2 (255 PSI)
5. Valve Sizes:50mm ~ 600mm are standard size.
6. Face to Face: Designed to meet ISO 5752 table 5
short.
7. Mounting Flange: Designed to comply with ISO
5211, can be easily fitted with an actuator.
8. 50mm Thru 300mm in Octagon stem design to
drive the disc for open/close.
9. 350mm Thru 600mm in Square stem design to
drive the disc for open/close.
|
