SVF-14SA
FULL BORE SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8. (1*2) A
SEAL: PTFE (SVPF-14SA)
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1.1/2”~2” (WITHOUT LEVER)
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8. (1*2) A
SEAL: PTFE (SVPF-14SA)
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1.1/2”~2” (WITHOUT LEVER)

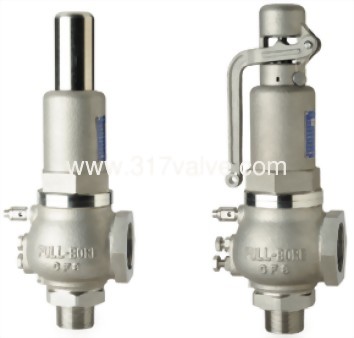

(SVF-14SA/SVPF-14SA) FULL BORE SUS304 SAFETY RELIEF VALVE SCW*SCW
“ 317 " BRAND ST.ST.304 SAFETY RELIEF VALVE FULL BORE SCREWED END
TO BSPT, NPT. WITHOUT LEVER. SEAT/DISC: SUS304. SPRING: STEEL. SET: 1-10
KGS.(ALT: 11-16 KGS) SAFETY RELIEF VALVE
(LOW LIFT & FULL BORE) OF T-ONE-S TRADING INC. TAIWAN MANUFACTURER

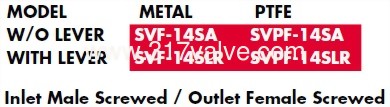

MODEL:
SVF-14SA (1-10K/16K) - METAL SEAT
MODEL: SVPF-14SA (1-10K/16K) - METAL + PTFE
FULL BORE ST.ST. SAFETY RELIEF VALVE
SCREWED END WITHOUT LEVER.
Please
specify the required Working Pressure and Set Pressure when ordering.
The features of low lift stainless steel safety valves for which the valve seat
& disc are processed by lapping.
The Disc can be replaced with PTFE for good effect of anti-leakage. (Model: SVPF-14SA, SVPF-14SLR)
