SVPF-S6LF
FULL BORE SAFETY RELIEF VALVE
FLANGED END TO JIS 10K OR ANSI
150 LBS. DRILLED BODY/SEAT: CF8M.
(1*2) DISC/SEAL: SUS316+PTFE.
SET P.: 2-10 KGS/CM2. (ALT.16K)
SIZE: 3/4”~2” (WITH LEVER)
FLANGED END TO JIS 10K OR ANSI
150 LBS. DRILLED BODY/SEAT: CF8M.
(1*2) DISC/SEAL: SUS316+PTFE.
SET P.: 2-10 KGS/CM2. (ALT.16K)
SIZE: 3/4”~2” (WITH LEVER)

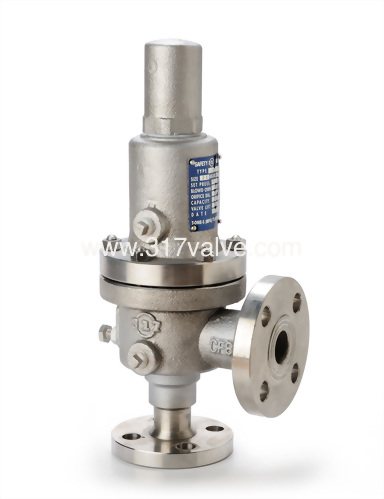

(SVPF-S6LF) FULL BORE SUS316 SAFETY RELIEF VALVE
“ 317 " BRAND ST.ST.316 SAFETY RELIEF VALVE FULL BORE FLANGED END
TO JIS 10K OR ANSI 150 LBS. DRILLED. SEAT/DISC/CAP: CF8M. SPRING: SUS304. WITH
LEVER. SET: 2-10 KGS.(ALT: 11-16 KGS) SAFETY RELIEF VALVE (LOW LIFT & FULL BORE)
OF T-ONE-S TRADING INC. TAIWAN MANUFACTURER
(SVPF-S6LF)
FULL BORE ST.ST. SAFETY RELIEF VALVE
FLANGED END WITH LEVER. (2-10K/16K)
Please
specify the required Working Pressure and Set Pressure when ordering.
The features of low lift stainless steel safety valves for which the valve seat
& disc are processed by lapping.
The Disc can be replaced with PTFE for good effect of anti-leakage. (Model: SVPF-S6AF, SVPF-S6LF)
