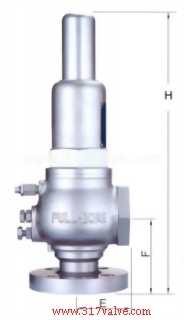

SVF-20SA
FULL BORE SAFETY RELIEF VALVE

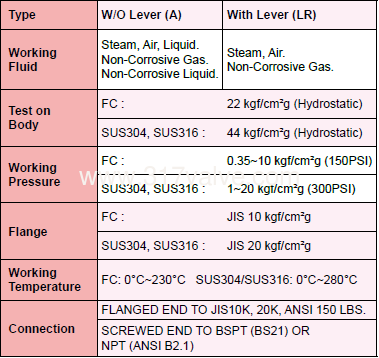

INLET: FLANGED JIS10K/ANSI 150LBS
OUTLET: SCREWED END TO BS21, ANSI B2.1
BODY: FC/SUS304/SUS316. (1*2)
DISC: SUS304. SEAT: SUS304/SUS316.
MAX. P.: 20 KGS/CM2. (300 PSI)
SIZE: 1/2”~2” (WITHOUT LEVER)
INLET: FLANGED JIS10K/ANSI 150LBS
OUTLET: SCREWED END TO BS21, ANSI B2.1
BODY: FC/SUS304/SUS316. (1*2)
DISC: SUS304. SEAT: SUS304/SUS316.
MAX. P.: 20 KGS/CM2. (300 PSI)
SIZE: 1/2”~2” (WITHOUT LEVER)

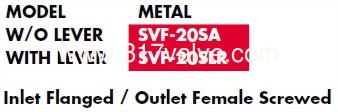

(SVF-20SA) FULL BORE SAFETY RELIEF VALVE - FLG/SCW

“ 317 " BRAND CAST IRON SAFETY RELIEF VALVE FULL BORE INLET FLANGED
JIS10K, ANSI 150LBS / OUTLET SCREWED END TO BSPT, NPT. WITHOUT LEVER.
SEAT/DISC: SUS304. SPRING: STEEL. SAFETY RELIEF VALVE (LOW LIFT &
FULL BORE) OF T-ONE-S TRADING INC. TAIWAN MANUFACTURER
(SVF-20SA)

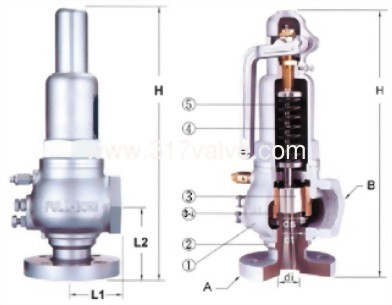

FULL BORE ST.ST. SAFETY RELIEF VALVE
INLET: FLANGED END / OUTLET: SCREWED END WITHOUT LEVER.
