SV-S8DAF
ST.ST.316 SAFETY RELIEF VALVE
FLANGED END TO JIS 10K OR ANSI
150 LBS. DRILLED. BODY/DISC/SEAT:
CF8M. (1*2)SEAL: PTFE (SVP-S8DAF)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITHOUT LEVER)
INLET FLANGE 304 / OUTLET FLANGE 304
FLANGED END TO JIS 10K OR ANSI
150 LBS. DRILLED. BODY/DISC/SEAT:
CF8M. (1*2)SEAL: PTFE (SVP-S8DAF)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITHOUT LEVER)
INLET FLANGE 304 / OUTLET FLANGE 304

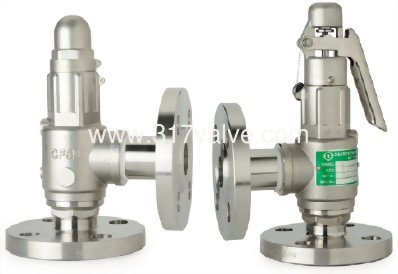

(SV-S8DAF/SVP-S8DAF) ST.ST.316 SAFETY RELIEF VALVE (1x2)
" 317 " BRAND ST.ST.316 SAFETY RELIEF VALVE INLET/OUTLET FLANGED TO JIS 10K OR ANSI 150LBS DRILLED. (1x2) BODY/SEAT/DISC/CAP: CF8M. WITHOUT LEVER. SET: 0.3-10 KGS. 317 SEAL OF SAFETY RELIEF VALVE (LOW LIFT & FULL BORE) OF T-ONE-S TRADING INC. TAIWAN MANUFACTURER
(SV-S8DAF) ST.ST.316 SAFETY RELIEF VALVE (1x2)INLET FLANGE 304 / OUTLET FLANGE 304 (WITHOUT LEVER)

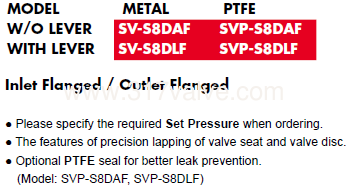

MODEL:
SV-S8DAF (0.3-10K/20K)
SVP-S8DAF (2-10K/20K)
Please specify the required Working Pressure and Set Pressure when ordering.
The features of low lift stainless steel safety valves for which the valve seat & disc are processed by lapping.
The Disc can be replaced with PTFE for good effect of anti-leakage. (Model: SVP-S8DAF, SVP-S8DLF)
