USF(FC)

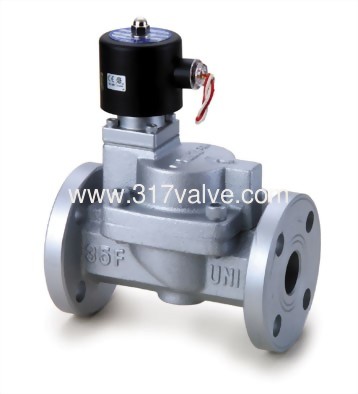

FC20 2-WAY SOLENOID VALVE
NORMALLY CLOSED. FLANGED
JIS10K, ANSI 150LBS, DIN PN16.
AC110V/220V, DC24V. FOR STEAM,
AIR, WATER,LIGHT OIL USE. SIZE: 1-1/4”~4”
PRESS: 1-10 KGF/CM2
TEMP: -5~185℃.
(USF (FC) Series) MULITIPLEX, PILOT OPERATED PISTON, CONDUCTIVE AND NORMALLY CLOSED SOLENOID VALVE FLANGED END

  1. USF(FC) SERIES IS MULTIPLEX-DRIVE, PISTON GUIDE, CONDUCTIVE NORMAL CLOSE.
  2. VALVE BODY MADE OF FC-20.
  3. STANDARD VOLTAGE: 110VAC / 220VAC / 24VDC. (50/60HZ)
  4. SPECIAL VOLTAGE AC/DC FOR CUSTOMER MADE.
  5. FLANGED END TO: JIS 10K, ANSI 150 LBS OR DIN PN16.
  6. NORMAL WORKING TEMPERATURE: 185℃ (PTFE).
  7. AC VOLTAGE TOLERANCE: +/- 10%
    DC VOLTAGE TOLERANCE: +/- 1%

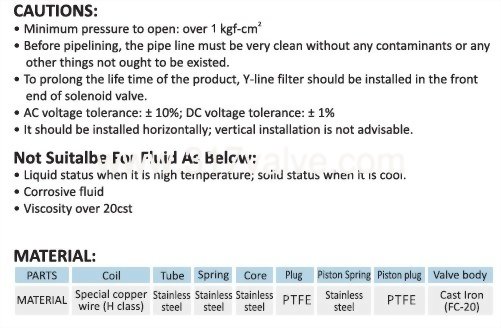

  8. NOT APPLY FOR FLUID OF
    LIQUID STATUS WHEN HEAT, SOLID STATUS WHEN COOL.
    VISCOSITY OVER 20 CST.
    CORROSIVE FLUID.

(USF (FC) Series) SOLENOID VALVE
MODEL: USF (FC) Series (ONE-PIECE, STEAM)
