SUS-80F
CF8M 2-WAY SOLENOID VALVE
NORMALLY CLOSED. FLANGED JIS10K DRILLED.
AC110V/220V, DC24V. FOR STEAM, WATER, AIR, LIGHT OIL USE. SIZE: 3” PRESS: 1-10 KGF/CM2
TEMP: -5~185℃.
NORMALLY CLOSED. FLANGED JIS10K DRILLED.
AC110V/220V, DC24V. FOR STEAM, WATER, AIR, LIGHT OIL USE. SIZE: 3” PRESS: 1-10 KGF/CM2
TEMP: -5~185℃.
(SUS-80F Series) SOLENOID VALVE

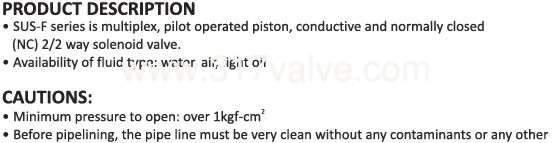

- SUS-80F SERIES IS MULTIPLEX, PILOT OPERATED PISTON, CONDUCTIVE AND NORMALLY CLOSED.
- VALVE BODY MADE OF INVESTMENT CASTING S/S 316.
- SUW-80F SHOULD START PRESSURE AT 1 KGF/CM2.
- STANDARD VOLTAGE: 110VAC / 220VAC / 24VDC. (50/60HZ)
- SPECIAL VOLTAGE AC/DC FOR CUSTOMER MADE.
- FLANGED END TO: JIS 10K DRILLED
- NORMAL WORKING TEMPERATURE: 185℃. (PTFE)
- AC VOLTAGE TOLERANCE: +/- 10%
- DC VOLTAGE TOLERANCE: +/- 1%
-

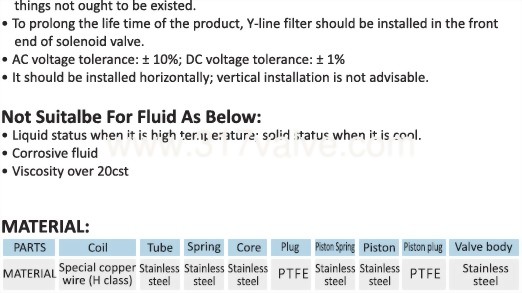

NOT APPLY FOR FLUID OF
●LIQUID STATUS WHEN HEAT, SOLID STATUS WHEN COOL.
●VISCOSITY OVER 20 CST.
●CORROSIVE FLUID.
(SUS-80F Series) SOLENOID VALVE
MODEL: SUS-80F Series
