UW-F-NO

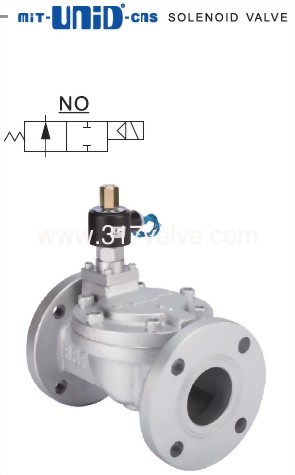

FC20 2-WAY SOLENOID VALVE
NORMALLY OPENED. FLANGED
JIS10K, ANSI 150LBS, DIN PN16.
AC110V/220V, DC24V.
FOR WATER, AIR LIGHT OIL USE.
SIZE: 1-1/4”~4” PRESS: 0.5-8 KGF/CM2
TEMP: -5~80℃.
NORMALLY OPENED. FLANGED
JIS10K, ANSI 150LBS, DIN PN16.
AC110V/220V, DC24V.
FOR WATER, AIR LIGHT OIL USE.
SIZE: 1-1/4”~4” PRESS: 0.5-8 KGF/CM2
TEMP: -5~80℃.
(UW-F-NO Series) MULTIPLEX, PILOT OPERATED DIAPHRAGM, CONDUCTIVE AND NORMALLY OPEN FC20 SOLENOID VALVE 1.1/4
- UW-F-NO SERIES IS MULTIPLEX-DRIVE, DIAPHRAGM GUIDE, CONDUCTIVE NORMAL OPEN.
- VALVE BODY MADE OF FC-20.
- STANDARD VOLTAGE: 110VAC / 220VAC / 24VDC. (50/60HZ)
- SPECIAL VOLTAGE AC/DC FOR CUSTOMER MADE.
- FLANGED END: JIS 10K, ANSI 150 LBS OR DIN PN-16.
- NORMAL WORKING TEMPERATURE: 80℃ (NBR).
-
AC VOLTAGE TOLERANCE: +/- 10%
DC VOLTAGE TOLERANCE: +/- 1% -
NOT APPLY FOR FLUID OF
●LIQUID STATUS WHEN HEAT, SOLID STATUS WHEN COOL.
●VISCOSITY OVER 20 CST.
●CORROSIVE FLUID.
(UW-F-NO Series) SOLENOID VALVE
MODEL: UW-F-NO Series
