BG-WGV. SS316-WGV
WATER GAUGE VALVE
SCREWED END TO BSPT, NPT.
2 PCS PER ONE SET.
BODY: BC6/CF8M
SIZE: 1/2” x 1/2” ~ 3/4” x 3/4”
1/2” x 5/8”
Gauge valve is installed on containers to control the liquid flow.
SCREWED END TO BSPT, NPT.
2 PCS PER ONE SET.
BODY: BC6/CF8M
SIZE: 1/2” x 1/2” ~ 3/4” x 3/4”
1/2” x 5/8”
Gauge valve is installed on containers to control the liquid flow.

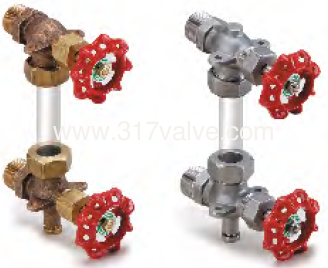

(BG-WGV/SS316-WGV) WATER GAUGE VALVE
(BG-WGV/SS316-WGV) WATER GAUGE VALVE
* Please
specify the required Model No. when ordering.
*
The available Thread: BS21 or ANSI B2.1
* Working Pressure: 100 psi.
* 2 pcs for one set. (exclude glass tube)
* Observe the water level, Gauge valve is installed on containers to control
the liquid flow.
Body 230 psi. (Water)
Seat 100 psi. (Water)
