SV-WB9A
BRONZE SAFETY RELIEF VALVE
DOUBLE FEMALE THREAD.
CREWED END TO BS21, ANSI B2.1
DISC/STEM: FORGED BRASS. SEAT: CAST BRONZE.
SET P.: 0.3-10 KGS/CM2. (WITHOUT LEVER)
SIZE: 2.1/2 x 3”
SIZE: 3" x 3"

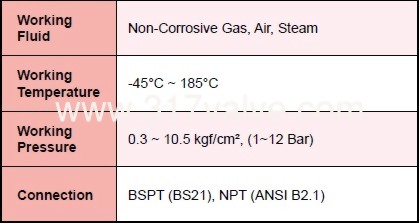

BEST FOR NONCORROSIVE GAS; AIR STEAM.
DOUBLE FEMALE THREAD.
CREWED END TO BS21, ANSI B2.1
DISC/STEM: FORGED BRASS. SEAT: CAST BRONZE.
SET P.: 0.3-10 KGS/CM2. (WITHOUT LEVER)
SIZE: 2.1/2 x 3”
SIZE: 3" x 3"
BEST FOR NONCORROSIVE GAS; AIR STEAM.

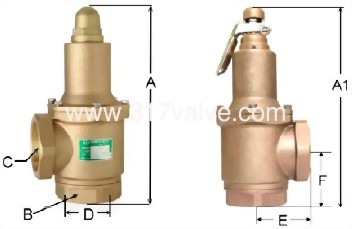

(SV-WB9A) BRONZE SAFETY RELIEF VALVE
" 317 " BRAND BRONZE SAFETY RELIEF VALVE SCREWED END TO BSPT, NPT. (ALT: 12 KGS) SPRING: STEEL. 317 SEAL OF SAFETY RELIEF VALVE (LOW LIFT & FULL BORE) OF T-ONE-S TRADING INC. TAIWAN MANUFACTURER.
SV-WB9A (0.3-10K/ALT.12K)
BRONZE LOW LIFT SAFETY RELIEF VALVE

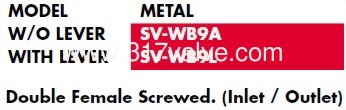

MODEL:
SV-WB9A WITHOUT LEVER
SV-WB9L WITH LEVER
Please specify the
required Working Pressure and Set Pressure when
ordering.
The features of low lift stainless steel
safety valves for which the valve seat & disc are processed by lapping.
