SV-B29/SVP-B29
SCREWED END TO BS21, ANSI B2.1
DISC/SEAT: FORGED BRASS.
SEAL: PTFE (SVP-B29)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITH LEVER)
LOW LIFT BRONZE SAFETY RELIEF VALVE SCREWED END TO BSPT, NPT, BSP THREAD. WITH LEVER. SET: 3.5 / 7.0 / 10 KGS. T-ONE-S (MFG) TRADING INC. TAIWAN MANUFACTURER
MODEL:

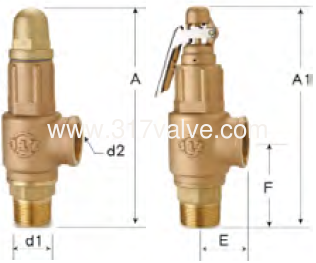

(SV-B29) BRONZE SAFETY RELIEF VALVE WITH LEVER (OLD MODEL: S3W-LR)

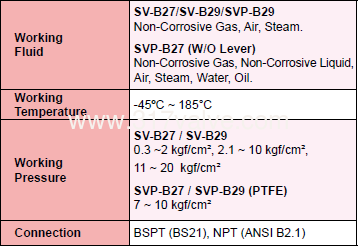

SV-B27/SV-B29 optional Pressure: 10.5~20 Kgf/cm2
When placing order, please indicate Working Pressure
The Disc can be replaced with PTFE for good effect of anti-leakage. (Model: SVP-B27, SVP-B29)
|
|
|
|
This type of safety valve is characterized by regulating of pressure in valve rising and blowing-out when actuated and is the smallest and lightest valve, and also can be used in non-corrosive gases (air, oxygen, nitrogen, etc.) steam and liquids, such as water and oil. The sizes shown in the chart are subject to change without notice. |
