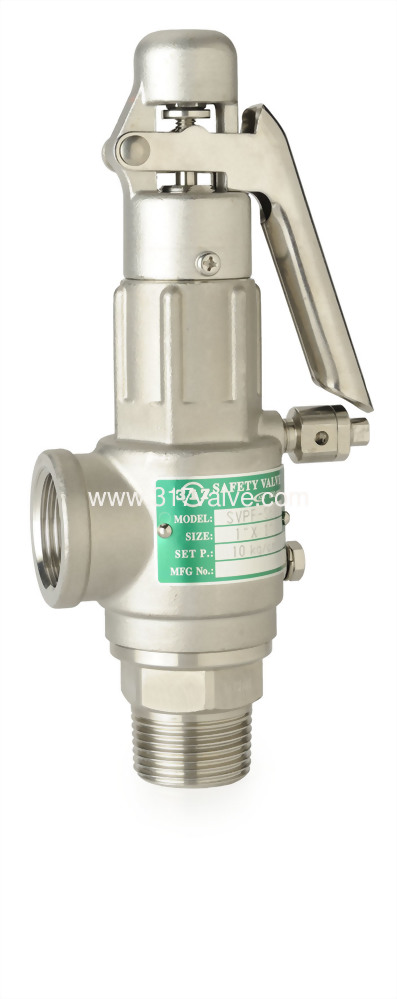

SVPF-S6L
FULL BORE ST.ST.316 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/SEAT: CF8M. (1*2)
DISC/SEAL: SUS316+PTFE.
SET P.: 2-10 KGS/CM2. (ALT.16K)
SIZE: 1/2”~2” (WITH LEVER)
SCREWED END TO BS21, ANSI B2.1
BODY/SEAT: CF8M. (1*2)
DISC/SEAL: SUS316+PTFE.
SET P.: 2-10 KGS/CM2. (ALT.16K)
SIZE: 1/2”~2” (WITH LEVER)
(SVPF-S6L) FULL BORE ST.ST.316 SAFETY RELIEF VALVE
“ 317 " BRAND ST.ST.316 SAFETY RELIEF VALVE (M/F) FULL BORE
SCREWED. SEAT/DISC/CAP: CF8M. SPRING: SUS304. SCREWED END TO BSPT, NPT. WITH
LEVER. SET: 2-10 KGS.(ALT: 11-16 KGS)
SAFETY RELIEF VALVE (LOW LIFT & FULL BORE) OF T-ONE-S TRADING INC.
TAIWAN MANUFACTURER
(SVPF-S6L)
FULL BORE ST.ST. SAFETY RELIEF VALVE
WITH LEVER. (2-10K/16K)
Please
specify the required Working Pressure and Set Pressure when ordering.
The features of low lift stainless steel safety valves for which the valve seat
& disc are processed by lapping.

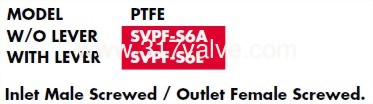

The Disc can be replaced with PTFE for good effect of anti-leakage. (Model: SVPF-S6A, SVPF-S6L)
