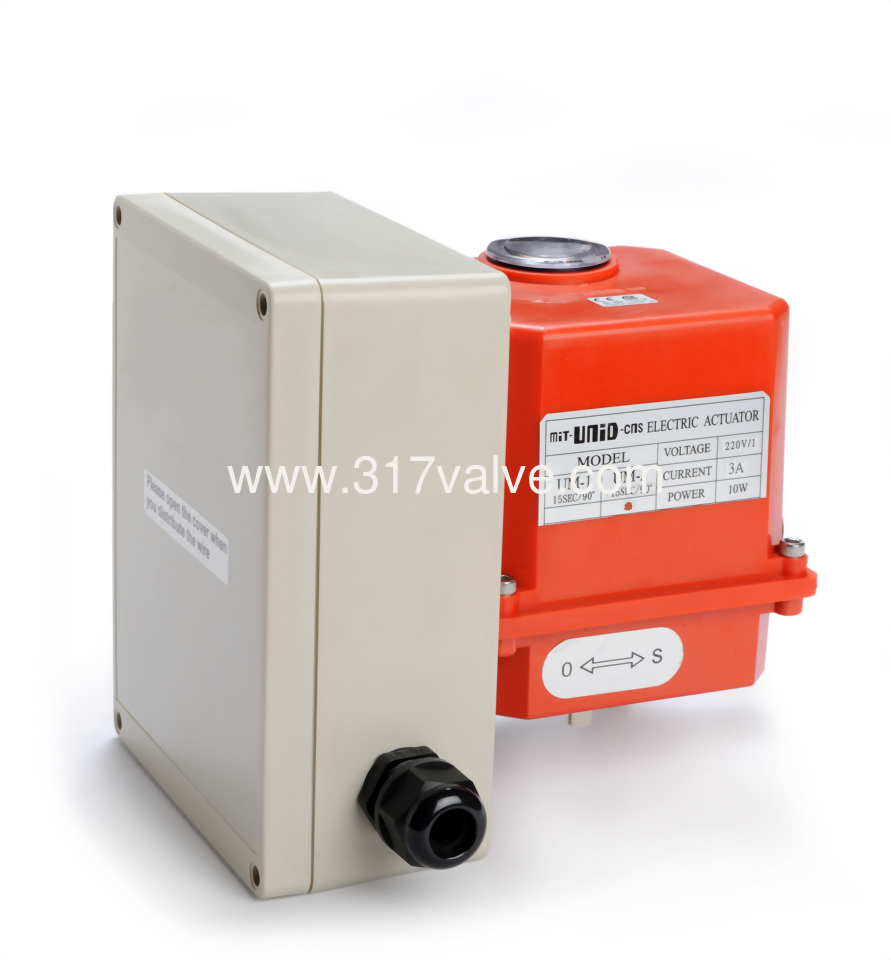

Frequent-Working Electric Actuator

Paten No. 102207192

24hours Working


[Introduction]
1. Installed on UM1-UM6 Series.
2. UM/R series is low power consumption, High torque electric actuator.
3. With seamless shell and IP67 rated waterproof enclosure, able to install on every outdoors environment.
4. Smooth Opening speed, effectively to avoid water hammer and increase pipeline life.

[Standard Voltage]
AC 90V ~ 240V
DC 12V
DC 24V

[Working environment]
-10℃ ~ 50℃

[Feature]
1. 24-hour long working time (On and off/minute), No Need to worry motor overheat.
2. Max Torque up to 6000kgf-cm(UM6-30 Sec). Various models to meet different applications.

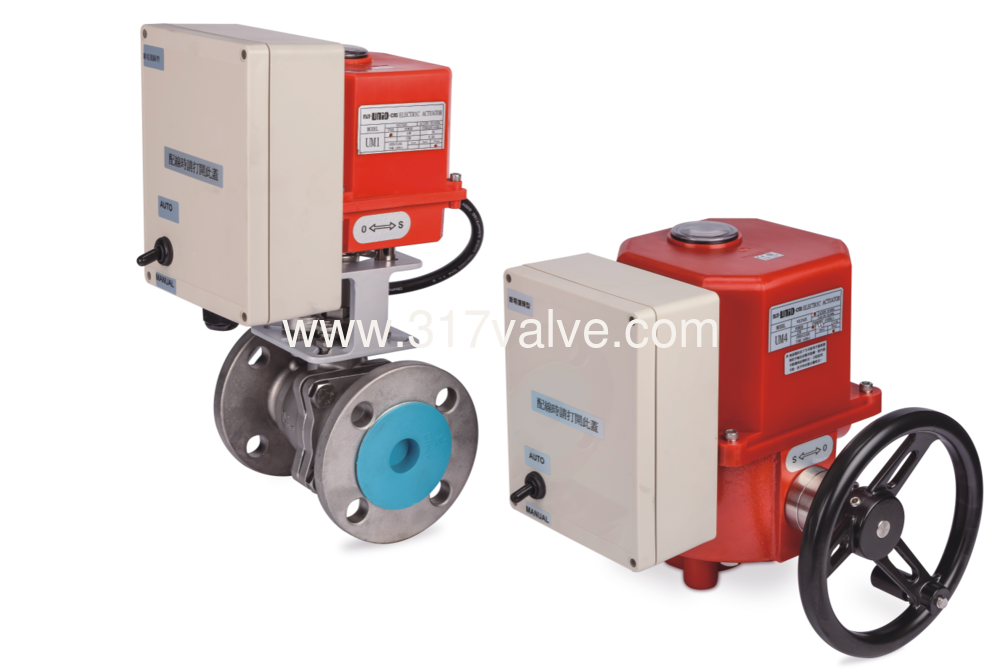

3. All Series are equipped with Manual/Automatic switch equipment and Manual equipment. For UM3-1 and above models Electric actuators are equipped with Hand wheel equipment for manual operation when power failure.
4. Output equipment: All series equipped with full open and full close, non-electricity connection (COM, NO, NC) able to withstand voltage AC220V/5A and connect lamp signal or feedback to other controls.

1.png[Cautions]
1. Please confirm electricity voltage, temperature, working pressure, media of fluid and other characteristics at working site (Ex. If there is Unstable voltage situation, stabilizer is required)
2. All series are equipped with extended control Box.
3. Power must be turned off when using manual control equipment.  Please do not use brute force to operate to prevent malfunction of internal components.
