R5.R7.R10.R15
ELECTRIC ACTUATOR
SCRD 2PC/3PC BALL VALVE: 1”~2”
FLGD BALL VALVE: 1-1/4”~2”
UNION PVC BALL VALVE: 1”~2”
BUTTERFLY VALVE: 2”~3”
3-WAY VALVE: 1-1/4”~1-1/2”

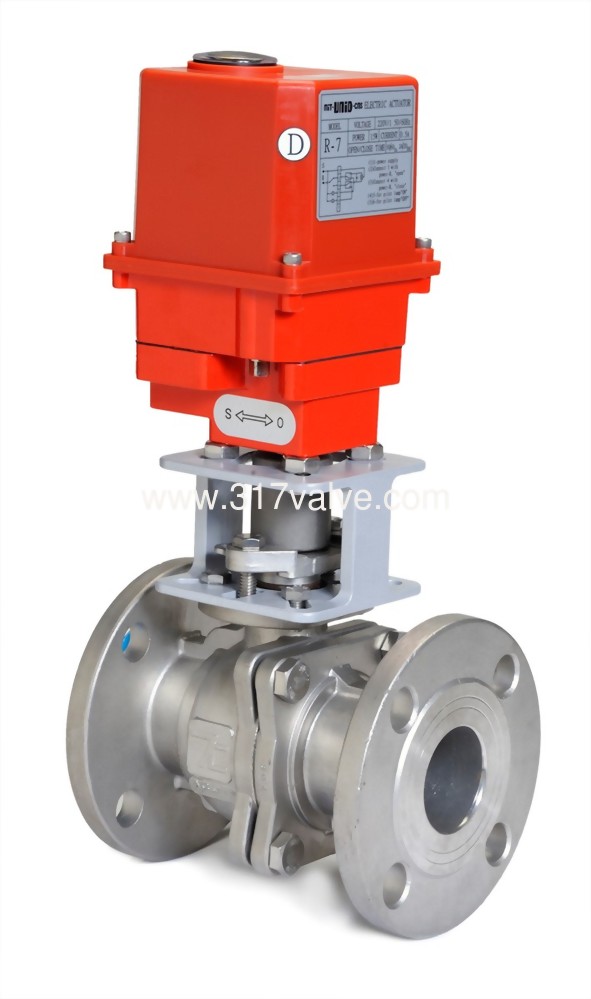

(R5 (10W 50Nm) Series / R7 (15W 70Nm) / R10 (10/15W 100Nm) / R15 (20W 150Nm) Series Direct Mount & With Mounting Kits) ELECTRIC ACTUATOR
Standard Specification
1. Power Supply: 110 VAC/220VAC±10% 1PH(50Hz/60Hz), 24VDC/24VAC, 12VDC
2. Ambient: Temp: -20℃~ 60℃Humidity: 10%~95% (25℃)
3. Motor: Reversible Induction Motor Class F Rating S2 (30 min.)
Duty 25% (actuator action off / reset on every 3 min.)
4. hermal Protection: 135℃±5°(Cut-off) 95℃±15°(Reset)
5. Conduit Entries: 1PCS 1/2” PF
6. Indicator: Position Indicator
7. Enclosure: IP66
8. Manual Override: 8mm wrench
9. Materials: Aluminum Alloy Body / Nylon Cover.
10. Travel Angle: 90°±5°
Optional Items
1. Proportional Control Unit: Rating S4 25% 1200 cycle/H.
Single Input / Output 4-20mA, 2-10V, 1-5V,±5%. Sensitivity±10%
2. Aux Limit Switch: SPDT 250VAC/3A * 2 PCS.
3. Heater: 5W (220VAC/110VAC)
4. Potential Meter: 5KΩ
5. Cover: Aluminum Alloy. (option)
