SV-S9L/SVP-S9L
ST.ST.304 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8.
SEAL: PTFE (SVP-S9L)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITH LEVER)
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8.
SEAL: PTFE (SVP-S9L)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITH LEVER)
(SV-S9L/SVP-S9L) LOW LIFT ST.ST.304 SAFETY RELIEF VALVE
" 317 " BRAND ST.ST.304 SAFETY RELIEF VALVE SEAT/DISC/CAP: CF8.
SCREWED END TO BSPT, NPT. WITHOUT LEVER. SET: 0.3-10 KGS. 317 SEAL OF SAFETY
RELIEF VALVE (LOW LIFT & FULL BORE) OF T-ONE-S TRADING INC. TAIWAN
MANUFACTURER

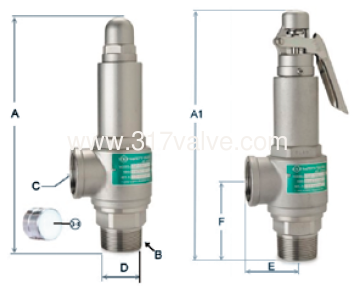

(SV-S9L) ST.ST.304 SAFETY RELIEF VALVE
MODEL:
SV-S9A / SVP-S9A WITHOUT LEVER
SV-S9L / SVP-S9L WITH LEVER
Please specify the requiredWorking PressureandSet Pressurewhen ordering.

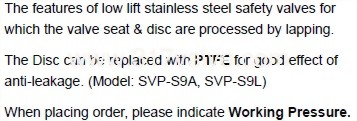

The features of low lift stainless steel safety valves for which the valve seat & disc are processed by lapping.
The Disc can be replaced with PTFE for good effect of anti-leakage. (Model: SVP-S9A, SVP-S9L)
(SV-S9L) ST.ST.304 SAFETY RELIEF VALVE
MODEL:
SV-S9A / SVP-S9A WITHOUT LEVER
SV-S9L / SVP-S9L WITH LEVER
Please specify the requiredWorking PressureandSet Pressurewhen ordering.
The features of low lift stainless steel safety valves for which the valve seat & disc are processed by lapping.
The Disc can be replaced with PTFE for good effect of anti-leakage. (Model: SVP-S9A, SVP-S9L)
