S3S-A
CAST IRON SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
DISC/SEAT: SUS304.
SET: 1 ~ 10 KGS/CM2.
SIZE: 1/2”~2” (WITHOUT LEVER)
ALT. BODY: SUS 304 / SUS 316.
S34-A / S36-A (1~20 KGS/CM2)
SCREWED END TO BS21, ANSI B2.1
DISC/SEAT: SUS304.
SET: 1 ~ 10 KGS/CM2.
SIZE: 1/2”~2” (WITHOUT LEVER)
ALT. BODY: SUS 304 / SUS 316.
S34-A / S36-A (1~20 KGS/CM2)

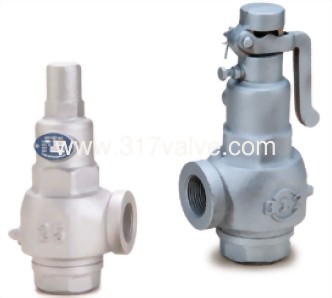

(S3S-A) CAST IRON LOW LIFT SAFETY RELIEF VALVE SCREWED END
" 317 " BRAND CAST IRON SAFETY RELIEF VALVE SCREWED END TO
BSPT, NPT. WITHOUT LEVER. 317 SEAL OF SAFETY RELIEF VALVE (LOW LIFT & FULL
BORE) OF T-ONE-S TRADING INC. TAIWAN MANUFACTURER
(S3S-A) CAST IRON LOW LIFT SAFETY RELIEF VALVE
(WITHOUT LEVER) ALT. BODY: SUS 304 / SUS 316.
Please specify the required Working Pressure and Set Pressure when ordering.

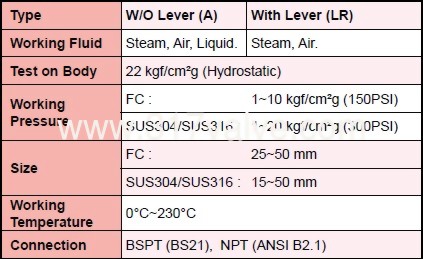

This type of safety valve is characterized by regulating of pressure in valve rising and blowing-out when actuated and is the smallest and lightest valve, and also can be used in non-corrosive gases (air, oxygen, nitrogen, etc.) steam and liquids, such as water and oil. The dimensions shown in the chart are subject to change without notice.
(S3S-A) CAST IRON LOW LIFT SAFETY RELIEF VALVE
(WITHOUT LEVER) ALT. BODY: SUS 304 / SUS 316.
Please specify the required Working Pressure and Set Pressure when ordering.
This type of safety valve is characterized by regulating of pressure in valve rising and blowing-out when actuated and is the smallest and lightest valve, and also can be used in non-corrosive gases (air, oxygen, nitrogen, etc.) steam and liquids, such as water and oil. The dimensions shown in the chart are subject to change without notice.
