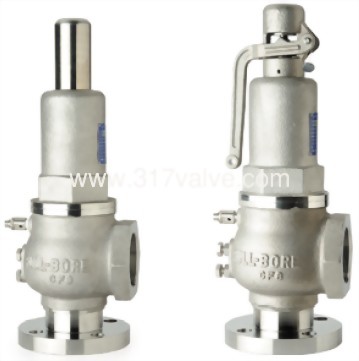

SVF-16SA

FULL BORE SAFETY RELIEF VALVE
FLANGED 10K/150 TO SCREWED END
BODY/DISC/SEAT: CF8. (1*2)
SEAL: PTFE (SVPF-16SA)
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1.1/2”~2” (WITHOUT LEVER)
(SVF-16SA/SVPF-16SA) FULL BORE SUS304 SAFETY RELIEF VALVE FLG*SCW

“ 317 " BRAND ST.ST.304 SAFETY RELIEF VALVE FULL BORE INLET FLANGED JIS10K, ANSI 150LBS / OUTLET SCREWED END TO BSPT, NPT. WITHOUT LEVER. SEAT/DISC: SUS304. SPRING: STEEL. SET: 1-10 KGS.(ALT: 11-16 KGS)  SAFETY RELIEF VALVE (LOW LIFT & FULL BORE) OF T-ONE-S TRADING INC. TAIWAN MANUFACTURER

MODEL: SVF-16SA (1-10K/16K) - METAL SEAT
MODEL: SVPF-16SA (1-10K/16K) - METAL + PTFE
FULL BORE ST.ST. SAFETY RELIEF VALVE

INLET: FLANGED END / OUTLET: SCREWED END WITHOUT LEVER.

Please specify the required Working Pressure and Set Pressure when ordering.
The features of low lift stainless steel safety valves for which the valve seat & disc are processed by lapping.
The Disc can be replaced with PTFE for good effect of anti-leakage. (Model: SVPF-16SA, SVPF-16SLR)
