BV-316.BV-304
BAR STOCK 1-PC BALL VALVE
SCREWED END TO BS21, ANSI B2.1 DIN-259.
REDUCING BORE. 800 WOG.

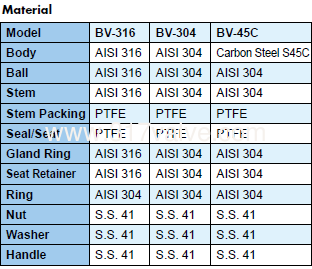

BODY: AISI 316 / AISI 304
SIZE: 1/4”~2”
SCREWED END TO BS21, ANSI B2.1 DIN-259.
REDUCING BORE. 800 WOG.
BODY: AISI 316 / AISI 304
SIZE: 1/4”~2”

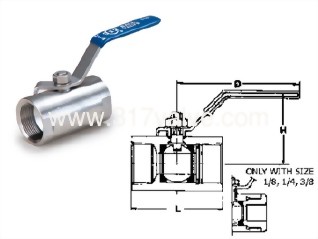

(BV-316/BV-304) BAR STOCK 1-PC BALL VALVE (REDUCING BORE) 800 WOG
(BV-316/BV-304) BAR STOCK
1-PC BALL VALVE (REDUCING BORE) 800 WOG
* Please specify the required Model No. when ordering.
* The available THREAD: ANSI B2.1, BS21 or DIN-259.
* The handle of AISI 316 or AISI 304 is available when required.
Hydrostatic Test Pressure:
Body: 1500 PSI (Hydrostatic)
Seat: 150 PSI (Air)
* Please specify the required Model No. when ordering.
* The available THREAD: ANSI B2.1, BS21 or DIN-259.
* The handle of AISI 316 or AISI 304 is available when required.
Hydrostatic Test Pressure:
Body: 1500 PSI (Hydrostatic)
Seat: 150 PSI (Air)
