• VTP

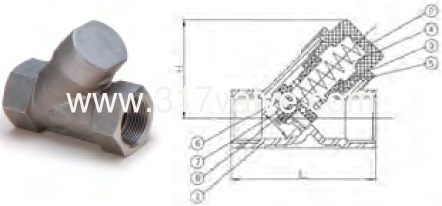

  • STAINLESS STEEL 316 PISTON CHECK VALVE (VTP)

VTP

ST.ST.316 PISTON CHECK VALVE
PN40 1.4408
SCREWED END TO BS21,
ANSI B2.1, DIN-259 OR DIN-2999.
BODY: CF8M
SIZE: 1/4”~2”
(VTP) PN40 STAINLESS STEEL 316 PISTON CHECK VALVE

(VTP) PN40 STAINLESS STEEL 316 PISTON CHECK VALVE

* Please specify the required Model No. when ordering
* Investment casting body and cap
* The available THREAD: ANSI B2.1, BS21 or DIN-259/2999.
* Pressure rations 300 PSI (20BAR) W.O.G.
* Max. Temperature 230℃
* ASTM-A351, CF8M, Class 300
* The end-to-end length conforms to DIN 3202 Part 4, M8 series (PN40)

Applicable:
_Petrochemical industry lines
_Chemical lines
_Circulating water lines
_Air Conditioning, Fire, and Steam system
_Factory lines
