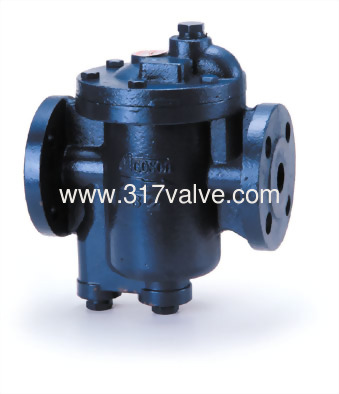

ST-B2F
INVERTED BUCKET STEAM TRAP
FLANGED END TO JIS 10K OR ANSI
150 LBS. DRILLED. BODY: FC22
ALT. SET: 3, 5, 10, 14, 18 KG/CM2.
SIZE: 3/4”~1”
FLANGED END TO JIS 10K OR ANSI
150 LBS. DRILLED. BODY: FC22
ALT. SET: 3, 5, 10, 14, 18 KG/CM2.
SIZE: 3/4”~1”
(ST-B2F) Inverted Bucket Steam Trap Flanged End
" NICOSON " BRAND
CAST IRON INVERTED BUCKET STEAM TRAP
FLANGED END TO JIS 10K OR ANSI 150 DRILLED.
SET: 10KG. (3.5/14/18K)
(ST-B1F / ST-B2F / ST-B3F / ST-B4F / ST-B5F / ST-B6F)
CAST IRON INVERTED BUCKET STEAM TRAP
When placing order of Steam Trap, please indicate with:
1. Model number.
2. Dimension of pipe connection: Screwed end: BSPT or NPT.
3. Specify type of flanged in detail: Flanged end: JIS 10K or ANSI 150 LBS.
4. Operating pressure setting: 3K / 5 K / 10K / 14K / 18K.
(Maximum : 18 kg/cm2)
