Name: S3F-A
Brand: T-ONE-S (MFG) TRADING INC.

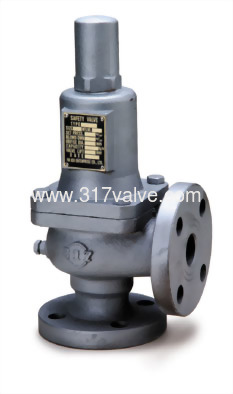

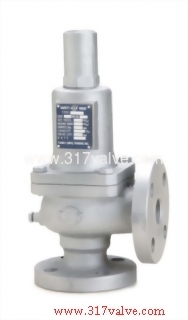

SKU: (S3F-A) CAST IRON LOW LIFT SAFETY RELIEF VALVE FLANGED END

S3F-A

CAST IRON SAFETY RELIEF VALVE
FLANGED END TO JIS 10K OR ANSI
150 LBS. DRILLED. DISC: SUS304.
SET P.: 1 ~ 10 KGS/CM2.
SIZE: 1”~12” (WITHOUT LEVER)
ALT. BODY: SUS 304 / SUS 316.
S34F-A / S36F-A (1~20 KGS/CM2)

(S3F-A) CAST IRON LOW LIFT SAFETY RELIEF VALVE FLANGED END

Q'ty :

Description
Features

" 317 " BRAND CAST IRON SAFETY RELIEF VALVE FLANGED END TO JIS 10K FF DRILLED. OR FLANGED END TO ANSI 150 LBS FF DRILLED. OR FLANGED END TO DIN PN16/PN10 FF DRILLED. WITHOUT LEVER. MAX: 10 KGS. SPRING: STEEL. 317 SEAL OF SAFETY RELIEF VALVE (LOW LIFT & FULL BORE) OF T-ONE-S TRADING INC. TAIWAN MANUFACTURER.

(S3F-A) CAST IRON LOW LIFT SAFETY RELIEF VALVE
(WITHOUT LEVER) ALT. BODY: SUS 304 / SUS 316.

Please specify the required Working Pressure and Set Pressure when ordering.

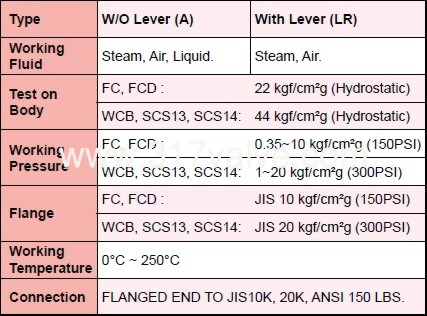

This type of safety valve is characterized by regulating of pressure in valve rising and blowing-out when actuated and is the smallest and lightest valve, and also can be used in non-corrosive gases (air, oxygen, nitrogen, etc.) steam and liquids, such as water and oil. The dimensions shown in the chart are subject to change without notice.
