UM2-5.UM2-7
UM DIRECT MOUNTING SERIES
ELECTRIC ACTUATOR
SCRD 2PC/3PC BALL VALVE: 1”~2”
FLGD BALL VALVE: 1-1/4”~2”
UNION PVC BALL VALVE: 1”~2”
BUTTERFLY VALVE: 2”~3”
3-WAY VALVE: 1-1/4”~1-1/2”
ELECTRIC ACTUATOR
SCRD 2PC/3PC BALL VALVE: 1”~2”
FLGD BALL VALVE: 1-1/4”~2”
UNION PVC BALL VALVE: 1”~2”
BUTTERFLY VALVE: 2”~3”
3-WAY VALVE: 1-1/4”~1-1/2”

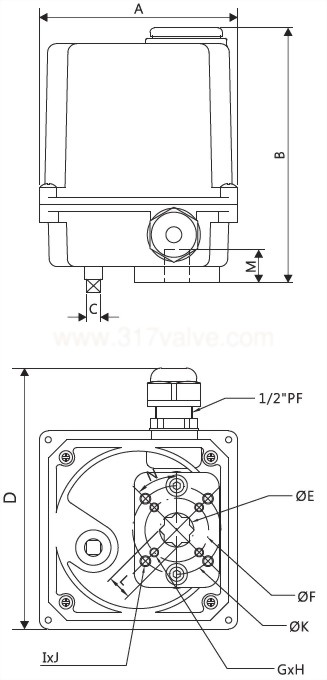

(UM2-5 (15W) Series / UM2-7 (18W) Series Direct Mount) ELECTRIC ACTUATOR
(UM Direct Mount Series) ELECTRIC
ACTUATOR
UM2-5 (15W
50Nm) Series
UM2-7 (10W 50Nm/18W 70Nm) Series
Standard
Specification.
1. Power Supply: 110 VAC/220VAC±10%
1PH(50Hz/60Hz), 24VDC/24VAC, 12VDC
2.
Ambient: Temp: -20℃~ 60℃Humidity:
10%~95% (25℃)
3. Motor:
Reversible Induction Motor Class F Rating S2 (30 min.)
Duty 25% (actuator action off / reset on every 3 min.)
4. Thermal Protection: 135℃±5°(Cut-off) 95℃±15°(Reset)
5. Conduit Entries: 1PCS 1/2” PF
6.
Indicator: Position Indicator
7.
Enclosure: IP66
8. Manual
Override: 8mm wrench
9.
Materials: Aluminum Alloy Body / Nylon Cover.
10. Travel
Angle: 90°±5°
1. Proportional Control Unit: Rating S4 25% 1200 cycle/H.
Single Input / Output 4-20mA, 2-10V, 1-5V,±5%. Sensitivity±10%
2. Aux Limit Switch: SPDT 250VAC/3A * 2 PCS.
3. Heater: 5W (220VAC/110VAC)
4. Potential Meter: 5KΩ
5. Cover: Aluminum Alloy. (option)
