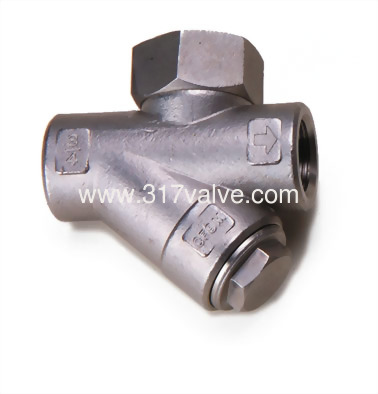

  • ST.ST.316 STEAM TRAP (UN-317)

UN-317

THERMODYNAMIC ST.ST.316
STEAM TRAP PN40 ANSI 600 LBS.
SCREWED END TO BS21, ANSI B2.1
OR DIN-259. BODY: INVESTMENT CF8M
SIZE: 1/2”~1”
(UN-317) ST.ST.316 STEAM TRAP

" UNIWU " BRAND THERMODYNAMIC ST.ST.316 STEAM TRAP
ANSI 600LBS. PN40.(ANSI 4.5-600 LBS. PN 0.3-40).
WORKING TEMP: 250℃ / 482℉ SCREWED END TO BSPT, NPT.

Due to their compact design and extremely cost-effective, thermodynamic traps are widely used in applications that require immediate removal of condensate from steam lines and steam equipment. They will discharge condensate intermittently near the saturation temperature.  Suitable for a variety of applications, such a steam main lines, tracers, steam heating equipment, etc.

This type of trap is characterized by small volume, lightweight, large flow capacity. The maximum back pressure of the trap is 80% of the inlet pressure, but for smooth operation, it is recommended that the backpressure should not exceed 50% of the inlet pressure.

These features and very high and severe quality standards for the whole production process give thermodynamic steam traps a long and reliable service life.

" UNIWU " BRAND
THERMODYNAMIC ST.ST.316 STEAM TRAP

ANSI 600LBS. PN40. (ANSI 4.5-600 LBS. PN 0.3-40)
WORKING TEMP: 250
/ 482
SCREWED END TO BSPT, NPT.

MODEL: UN-317

Specifications:

Specification



1.

Working Pressure

:

ANSI  4.5~600LBS. DIN PN 0.3~40. JIS 0.3~ 40KG/CM2

2.

Test Pressure

:

Body: 1200 PSI.  PN 80.  80 KG/CM2  (cold hydrostatic)

3.

Working Temperature

:

Max allowable 250 / 482  Body: Max 400 / 752

4.

Thread end

:

BS21, ANSI B2.1 or DIN 259.



        Max. back pressure should not exceed 80% of inlet pressure.
