• ST-T6F

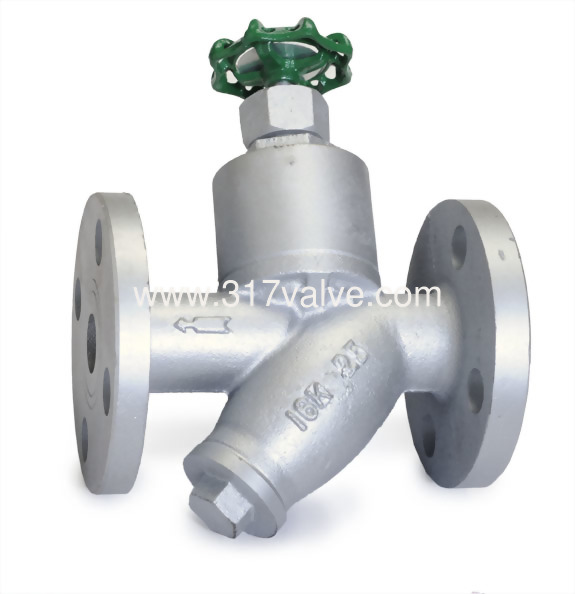

  • CAST IRON STEAM TRAP MANUAL TYPE FLANGED END (ST-T6F)

ST-T6F

CAST IRON STEAM TRAP MANUAL TYPE CLASS 16K
FLANGED END TO JIS 10K, ANSI 150,
DIN-PN16 OR PN10. DRILLED.
BODY: FC20
SIZE: 1/2”~2”
(ST-T6F) CAST IRON STEAM TRAP MANUAL TYPE FLANGED END

(ST-T6F) CAST IRON STEAM TRAP MANUAL TYPE FLANGED END

This type of thermodynamic trap (disc type, manual operated) has a simple design and cost-effectiveness. This type of trap is widely used in applications that require immediate removal of condensate from steam lines and steam equipment.

They will discharge condensate intermittently near the saturation temperature. Suitable for various applications, such as steam mains, steam heating equipment, etc.


(ST-T6F) CAST IRON STEAM TRAP MANUAL TYPE FLANGED END

* Please name the model No. (ST-T6F) when negotiation.
* End Flange Dimensions: Acc. to JIS 10K or ANSI 150 LBS.
* Working Temperature: 120℃
* Max. Temperature: 220℃
* Test Pressure: Body 32 kgf/cm2 (Hydrostatic)
* Working Pressure: 0.3 kgf/cm2 – 16 kgf/cm2
