CV-CYD

CAST IRON CONTROL VALVE
CYLINDER TYPE. FLANGED END
TO JIS 10K OR ANSI 150 LBS. DRILLED.
BODY: FC20/FC25/SCS13
SIZE: 1/2”~6”
(CV-CYD) CYLINDER-TYPE CONTROL VALVE

Cylinder Driven CV-CYD Cylinder Control Valve Series: Provide high thrust because they have a better supply pressure range and can also provide long strokes. Compared to diaphragm actuators, cylinder-type actuators are suitable for applications that require more compactness or higher thrust than diaphragm-type actuators. Cylinder control valves are also installed in switch and emergency shutdown control systems.

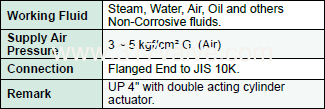

       Operating Air Pressure: 3-5 kg/cm2G
       Connection Rating: JIS10K
       Service: for Steam, Air, Water, Oil and other fluids.


     (CV-CYD) CYLINDER-TYPE CONTROL VALVE

     MODEL: CV-CYD / V4-CYD



TYPE :

CYLINDER TYPE   SPECIFICATION

Body :

l Single Seated, direct or reverse type, globe valve. 3-way diverting or mixing type.

l Valve Guide: Top-Bottom guide or Top guide.

l Packing: V-Teflon, Asbestos yarn or Carbon Graphite.

l Bonnet: Plain bonnet (0-200℃) Radiator finned bonnet (200℃ up)

Trim :

  St.St./Plug form in PTFE seat plug for on-off service.

Actuator :

l Spring return cylinder actuated, direct or reverse.

l Double action cylinder actuated.

l Cylinder material: Aluminum Alloy, Anodized.

l Pneumatic tubing connection: 1/4” female tap.

l Ambient Temperature: -20℃ ~ 60℃.

Valve Action :

Air to open or air to close by using direct or reverse actuator.

Accessory :

Hand wheel. Option: Positioner (Liner type & Rotary type). Limit Switch. Air set & Lubricator.

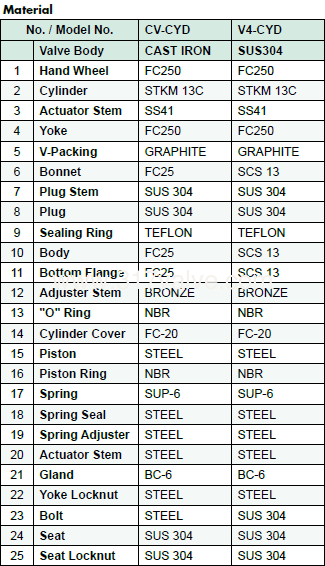

Performance :

Leakage of full closure: Class VI
