SV-S9DL/SVP-S9DL
ST.ST.304 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8. (1*2)
SEAL: PTFE (SVP-S9DL)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITH LEVER)
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8. (1*2)
SEAL: PTFE (SVP-S9DL)
SET P.: 0.3-10 KGS/CM2. (ALT.20K)
SIZE: 1/2”~2” (WITH LEVER)

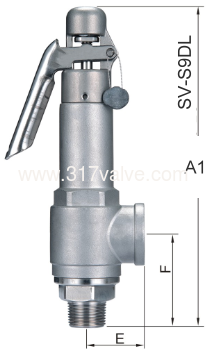

(SV-S9DL/SVP-S9DL) LOW LIFT ST.ST.304 SAFETY RELIEF VALVE (1x2)
" 317 " BRAND ST.ST.304 SAFETY RELIEF VALVE SEAT/DISC/CAP: CF8. SCREWED END TO BSPT, NPT. WITH LEVER. SET: 0.3-10 KGS. 317 SEAL OF SAFETY RELIEF VALVE (LOW LIFT & FULL BORE) OF T-ONE-S TRADING INC. TAIWAN MANUFACTURER
(SV-S9DL) ST.ST.304
SAFETY RELIEF VALVE (1x2)
MODEL:
SV-S9DA / SVP-S9DA WITHOUT LEVER
SV-S9DL / SVP-S9DL WITH LEVER
Please specify the required Working
Pressure and Set Pressure when ordering.

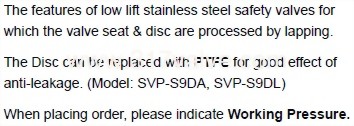

The features of low lift stainless steel safety valves for which the valve
seat & disc are processed by lapping.
The Disc can be replaced with PTFE for good effect of anti-leakage.
(Model: SVP-S9DA, SVP-S9DL)
|
|
