BV-61F
DIN PN10/PN16 2-PC BALL VALVE
FLANGED END TO DIN PN10 / PN16.
DRILLED. FULL PORT. F TO F: F4/F5.
BODY: FC20 (ALT.WCB/CF8M)
SIZE: 1/2”~12”
FLANGED END TO DIN PN10 / PN16.
DRILLED. FULL PORT. F TO F: F4/F5.
BODY: FC20 (ALT.WCB/CF8M)
SIZE: 1/2”~12”

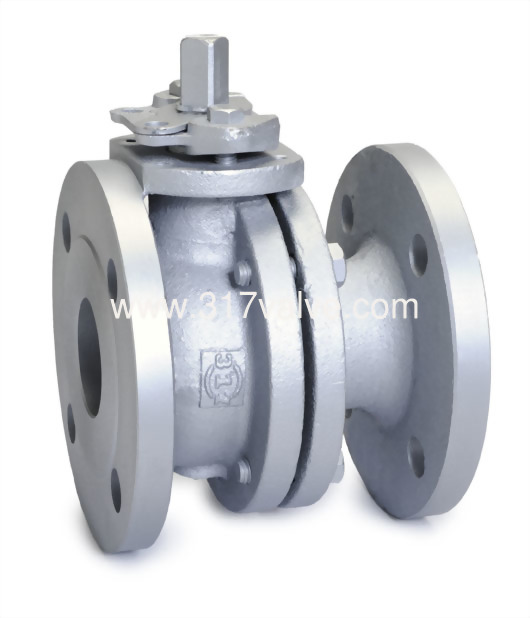

(BV-61F) 2-PC FLANGE BALL VALVE (FULL BORE) PN10/16
(BV-61F) CAST IRON 2-PC
BALL VALVE FLANGED END TO DIN PN10/16
* Please specify the required Model No. when ordering
* Face to Face Dimensions: DIN-3202 F4/F5
* End Flange Dimensions: DIN-2634/2635 PN10/16
* Lever Operated (15mm to 300mm)
* Gear Operated (Option) (150mm to 300mm)
* Gland type Pad
* PTFE +15%GF or +25%GF for Seat available
* Test Pressure: API 598/ EN12266-1
Test Pressure:
Body: 345 PSI / 24kg/cm2 (Hydrostatic)
Seat: 250 PSI / 17.5kg/cm2(By Water)
85 PSI / 6kg/cm2(By Air)
* Please specify the required Model No. when ordering
* Face to Face Dimensions: DIN-3202 F4/F5
* End Flange Dimensions: DIN-2634/2635 PN10/16
* Lever Operated (15mm to 300mm)
* Gear Operated (Option) (150mm to 300mm)
* Gland type Pad
* PTFE +15%GF or +25%GF for Seat available
* Test Pressure: API 598/ EN12266-1
Test Pressure:
Body: 345 PSI / 24kg/cm2 (Hydrostatic)
Seat: 250 PSI / 17.5kg/cm2(By Water)
85 PSI / 6kg/cm2(By Air)
