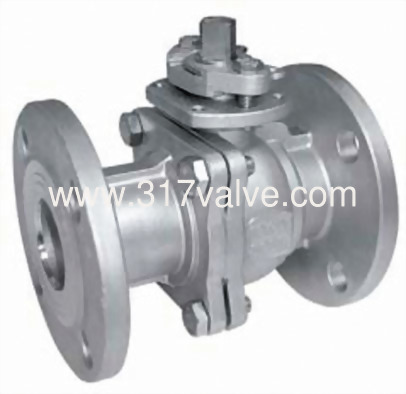

BV-17F.BV-34F.BV-36F
JIS 10K 2-PC BALL VALVE
FLANGED END TO JIS 10K DRILLED
FULL PORT.
BODY: WCB/CF8/CF8M
SIZE: 1/2”~10”
FLANGED END TO JIS 10K DRILLED
FULL PORT.
BODY: WCB/CF8/CF8M
SIZE: 1/2”~10”
(BV-17F/BV-34F/BV-36F) 2-PC BALL VALVE FLANGED END TO JIS 10K
(BV-17F/BV-34F/BV36F)
CAST IRON 2-PC BALL VALVE FLANGED END TO JIS 10K
* Please specify the required Model No. when ordering
* Face to Face Dimensions: JIS B2002 10K
* End Flanged Dimensions: JIS B2239
* Blow-Out proof Stem / Full Port
* Lever Operated or Gear Operated
* ISO 5211 Mounting Pad
* PTFE +15%GF or +25%GF for Seat when required
* Test Pressure: JIS B2003
Test Pressure:
Body: 2.1 Mpa / 21.5 kg/cm2(Hydrostatic)
Seat: 1.6 Mpa / 16.5 kg/cm2(By Water)
0.6 Mpa / 6 kg/cm2(By Air)
* Please specify the required Model No. when ordering
* Face to Face Dimensions: JIS B2002 10K
* End Flanged Dimensions: JIS B2239
* Blow-Out proof Stem / Full Port
* Lever Operated or Gear Operated
* ISO 5211 Mounting Pad
* PTFE +15%GF or +25%GF for Seat when required
* Test Pressure: JIS B2003
Test Pressure:
Body: 2.1 Mpa / 21.5 kg/cm2(Hydrostatic)
Seat: 1.6 Mpa / 16.5 kg/cm2(By Water)
0.6 Mpa / 6 kg/cm2(By Air)
