PR-B6S
BRONZE PRESSURE REDUCING
VALVE CLASS 10K
SCREWED END TO BS21, ANSI B2.1
BODY: BC1 / BC6
SIZE: 1/2”~2”
VALVE CLASS 10K
SCREWED END TO BS21, ANSI B2.1
BODY: BC1 / BC6
SIZE: 1/2”~2”

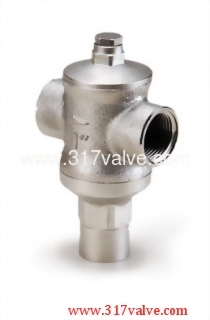

(PR-B6S) BRONZE PRESSURE REDUING VALVE
" 317 " BRAND
BRONZE PRESSURE REDUCING VALVE
OUTLET PRE-SET: 2 KGS. (RANGE: 0.5 - 5KGS.)
SCREWED END TO BSPT, NPT.
(PR-B6S) BRONZE PRESSURE REDUCING VALVE CLASS 10K
* Please name
the model No. (PR-B6S) when negotiation.
* Thread:
BS21, ANSI B2.1.
* Max.
Temperature: 120℃
* Test
Pressure: Body 15 kgf/cm2 (Hydrostatic)
* Outlet
Primary Pressure: 0.5 kgf/cm2 – 5 kgf/cm2
